The new Gravity gold standard and raced to EWS victory by Ritchie Rude before it was even released!

The EX 511 offers the same near legendary durability and strength to weight ratio of the EX 471 but with a full 30 mm internal width

The tubeless ready optimized rim bed provides fast tyre installation, a great tyre fit, and quick trouble-free tubeless setup

The DT Swiss welding process leaves an extremely consistent and strong weld joint

The included PHR washers and convex Squorx nipples naturally align perfectly with your chosen spokes, increasing stiffness and durability with no weight penalty over traditional eyeleted rims

Unique process for the black coating produces a tough and durable finish

Available in both 28 and 32 hole count

ERD 563 mm (27.5") or 601 (29") including washers

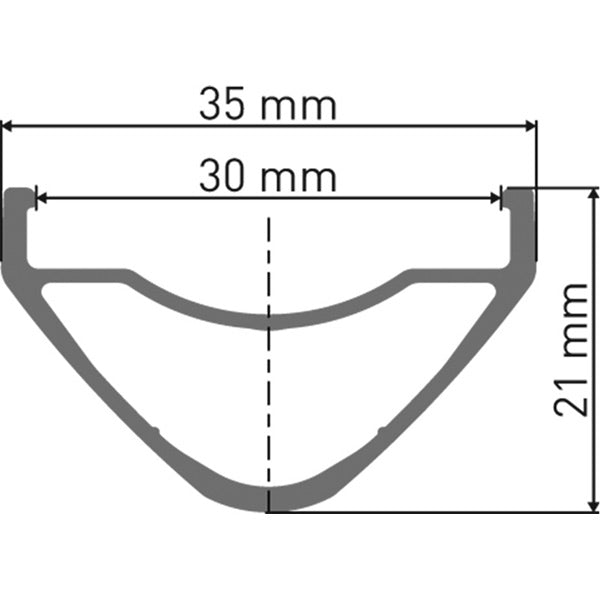

Outer width 35 mm Inner width 30 mm

Height 21 mm

Weight 535 grams (27.5") or 570 grams (29")

Specifications
