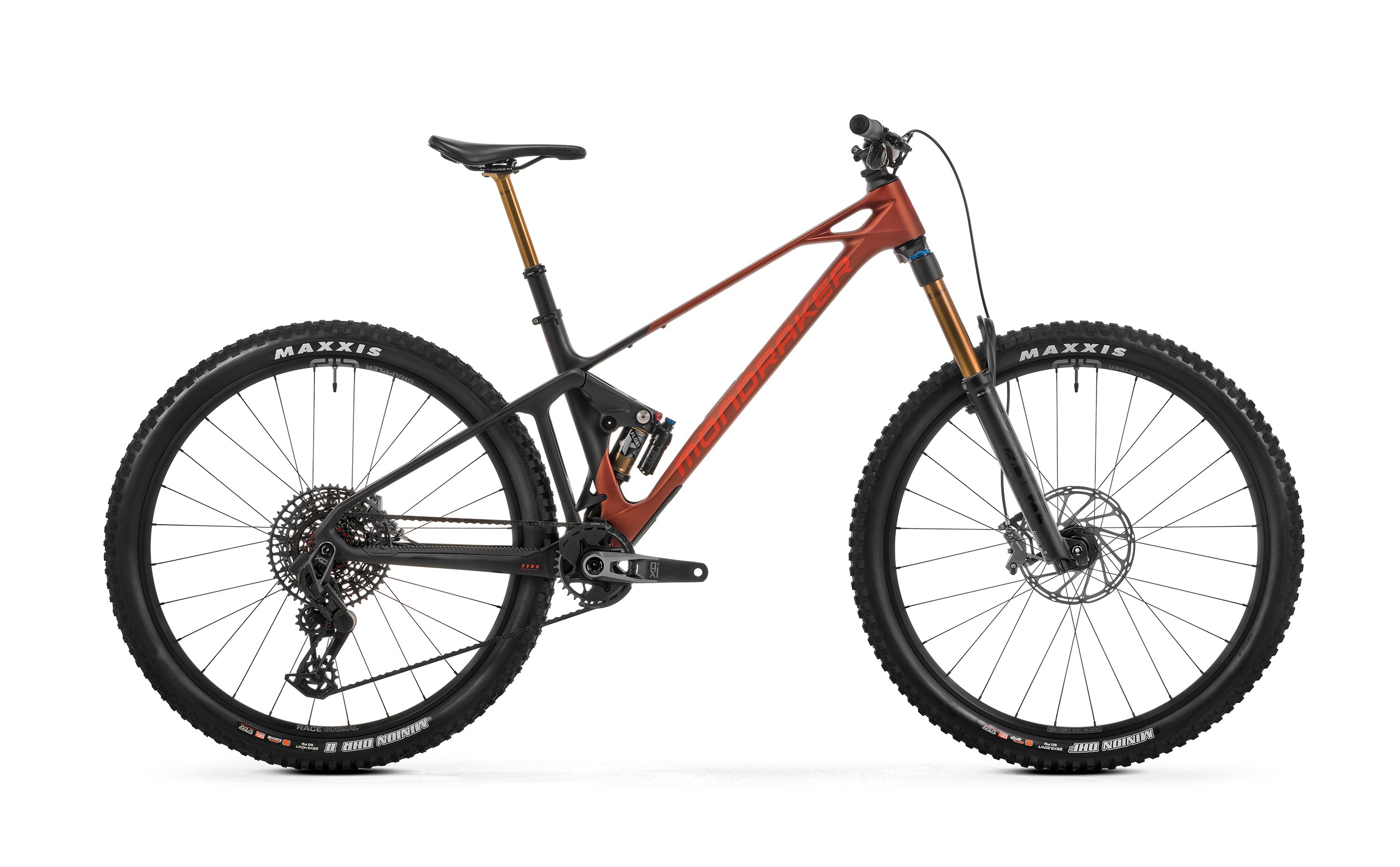

Mondraker foxy carbon rr earth red side view

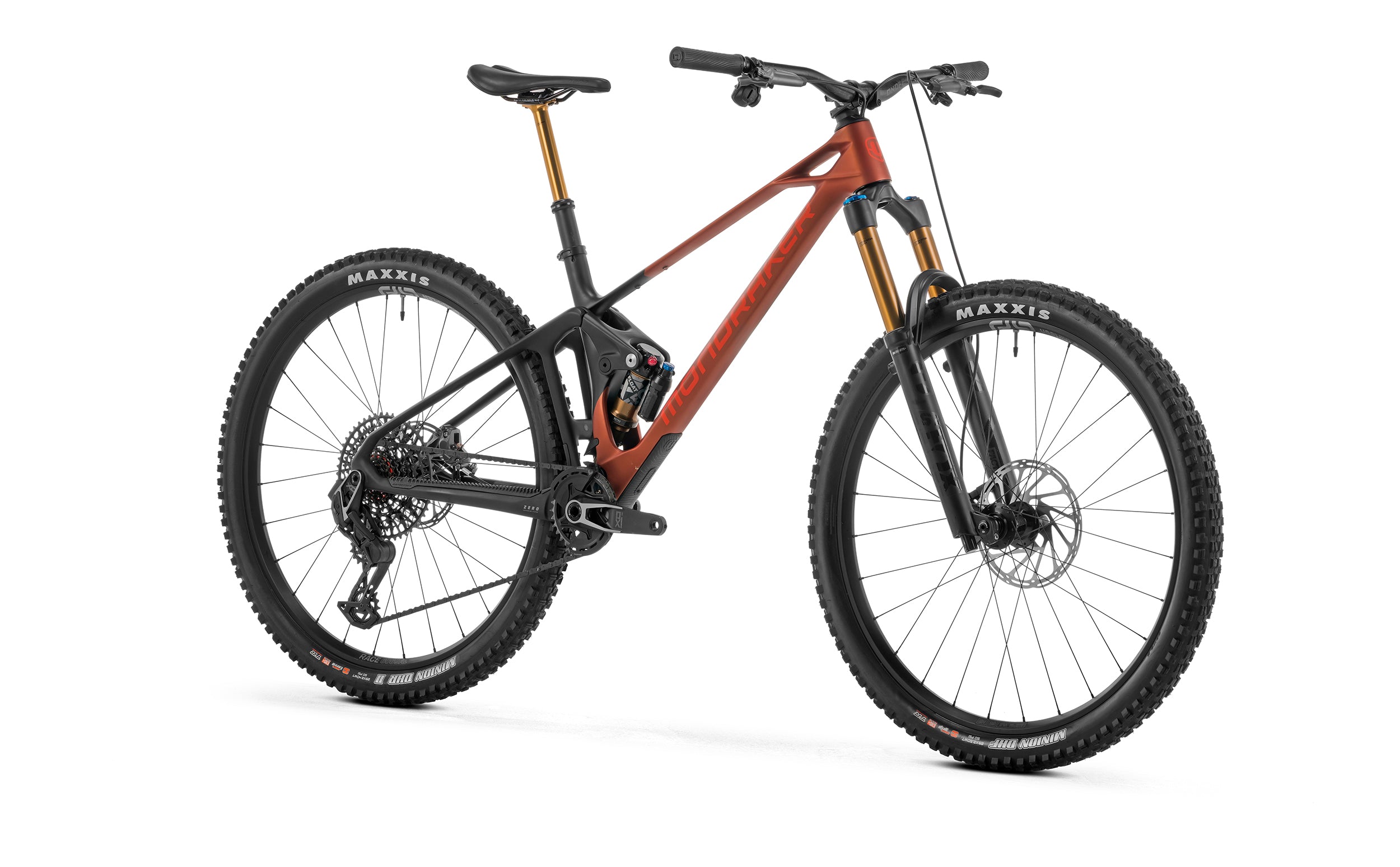

Mondraker foxy carbon rr earth red front view

Home
Collections
Mondraker Foxy
Mondraker Foxy Carbon RR Earth Red

Mondraker

Mondraker Foxy Carbon RR Earth Red

Name: Mondraker Foxy Carbon RR Earth Red
Brand: Mondraker
Price: 7999.0 GBP
Availability: OutOfStock

£ 7,999.00

Tax included.

This product is special order with Mondraker. Expected dispatch 1-2 weeks, please call us on 01977 520852 if you require an ETA

At Cykel House, we are committed to bringing you the best products at the best prices. If you find a product cheaper elsewhere, contact us via email or via live chat and we'll see if we can match that price.

We do have some criteria to meet when offering a Price Match.

To request a Price Match, provide the URL to the competitor’s lower price. If in-store, you can show us on your phone or a printed copy.

The competitor must be a UK-registered shop. All our products are brand new and genuine, therefor we cannot match prices from private sellers, auction sites, or international businesses.

The product must be identical to ours in condition, model, colour, and size, and the competitor must have it in stock at the time of the Price Match.

The competitor’s price must include VAT and delivery charges, and be listed on their website. We cannot match prices combined with other offers, including vouchers, clearance, or discontinued items.

Price Match offers cannot be applied after the sale is complete.

We cannot offer Price Matches for orders using insurance vouchers or on products purchased through finance or cycle-to-work schemes; these items must be paid in full using our usual payment methods.

If your Price Match is accepted, we will provide a discount code or link to complete your order. Only one discount code can be used per order.

All Price Match requests are subject to Cykel House's discretion, and we reserve the right to decline, alter, or withdraw this offer at any time.

Please note, whilst we can Price Match the majority of products, sending this information does not guarantee a price match is viable.

Email us your enquiry to: Hello@cykelhouse.com or hit the live chat.

Adrenaline runs through your veins.

If you’re a rider who enjoys going up, but what you really love is the ride back down and that feeling of flow as you rip along the sweetest trails in your area then you’re one of us, and one of our enduro bikes was made for you.

We’d bet that you love pushing your limits as far as you can, and when you get to the bottom you can’t help but tell your mates about that berm you railed or that jump that you’d been wanting to send forever and finally launched... then without a doubt you’ve got Mondraker DNA built-in. And we love that.

That's why our enduro bikes have FORWARD GEOMETRY, ZERO SUSPENSION SYSTEM and some of them even have MIND; technology that lets you set up your suspension like a pro mechanic but without having to be one. And best of all, whichever model you choose, you’ll feel like the luckiest rider on the planet.

Specifications

Frame

Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.

Sizes

S: 375mm / M: 415mm / L: 445mm / XL: 500mm

Rear shock

Fox Float X Factory Kashima EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

Light compression, light rebound, air volume spacer 0.6

Fork

Fox 36 29 Float GRIP X2 Factory Kashima, Gloss Black, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset

Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

Stem

Onoff S9 30mm 0º, Full CNC, 31.8mm barbore

Handlebar

Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips

Onoff Forest, CNC lock-on, 135mm

Seatpost

Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm,S size: 95mm -120mm, M size: 125mm -150mm, L size: 155mm -180mm, XL size: 185mm -210mm

Saddle

SDG BEL-AIR 3.0, LPU foam, steel rails

Front brake

Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear brake

Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust

Rims

e*thirteen Grappler Race, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub

Front tire

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 120TPI, folding bead

Rear tire

Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Crankset

Sram X0 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, All sizes: 170mm,CL 55

Rings

32T, CNC-machined alloy, T-Type

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm, wide

Chain

Sram X0 Eagle T-Type, 12s, Powerlock

Rear derrailleur

Sram X0 Eagle AXS T-Type,12s

Shift levers

Sram Eagle AXS Pod, 12s

Casette

Sram XS-1295, 10-52T, T-Type 12s

Weight

14,4 kg

Size Guide


	Frame size	S	M	M/L	L
A	Seattube length	375 mm 14.76"	415 mm 16.34"	445 mm 17.52"	500 mm 19.69"
B	Toptube length	600 mm 23.62"	620 mm 24.41"	650 mm 25.59"	670 mm 26.38"
C	Bottom bracket drop	-23mm / -28 mm -0.91"	-23/-28 mm -0.91"	-23mm / -28 mm -0.91"	-23mm / -28 mm -0.91"
D	Bottom bracket height	350 mm / 345 mm 13.78"	350 mm/345 mm 13.78"	350 mm / 345 mm 13.78"	350 mm / 345 mm 13.78"
E	Chainstay length	435 mm / 445 mm 17.13"	435 mm/445 mm 17.13"	435 mm / 445 mm 17.13"	435 mm / 445 mm 17.13"
F	Seat tube angle	70.5° / 70°	70.5°/70°	70.5° / 70°	70.5° / 70°
G	Effective seattube angle	76° / 75.5°	76°/75.5°	76° / 75.5°	76° / 75.5°
H	Headtube angle	65° / 64.5°	65°/64.5°	64.5°	65° / 64.5°
I	Fork Offset	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"
J	Wheelbase	1203 mm / 1210 mm 47.36"	1227 mm/1233 mm 48.31"	1253 mm / 1260 mm 49.33"	1279 mm / 1286 mm 50.35"
K	Headtube length	90 mm 3.54"	100 mm 3.94"	115 mm 4.53"	130 mm 5.12"
L	Reach	445 mm / 440 mm 17.52"	465 mm/460 mm 18.31"	485 mm / 480 mm 19.09"	505 mm / 500 mm 19.88"
M	Stack	615 mm / 617 mm 24.21"	623 mm/627 mm 24.53"	637 mm / 641 mm 25.08"	651 mm / 656 mm 25.63"

In-Built Telemetry

Something else to bear in mind is that the Foxy Carbon comes with our MIND telemetry technology fitted as standard. In short, MIND helps you to set up your suspension perfectly.

Combined with the myMondraker app you’ll nail your suspension settings from the very start, setting up your bike exactly to suit your weight and riding style. By following a few simple steps and making some easy adjustments you’ll be on your way to being a better rider, something that’s been a priority for us for a long time now.

What’s more, after each and every ride you’ll be able to consult data such as the distance you’ve ridden, the jumps you’ve launched and just how far you jumped, as well as just how much suspension travel you were using at any time during the ride… and more.

Foxy is and always has been “THE BIKE” par excellence at Mondraker

Originally released in 2004, it never stopped evolving and the 2015 release of the Foxy Carbon pumped the model all the way up to eleven. Since then, and taking into account the improvements made over the last few seasons, it’s been one of the most popular and most successful models in the world. Its unreal pedaling efficiency and generous suspension travel make the Foxy our most complete model. In this, the 2022 season we’ve re-evolved our Foxy Carbon to keep it up there as the undisputed leader: "THE BIKE" and an international benchmark to be reckoned by.

STEALTH AIR FULL CARBON

The Foxy Carbon frame is manufactured using our state-of-the-art STEALTH AIR FULL CARBON technology, resulting in a frame with a distinctive silhouette and elegant lines. Additionally, during production, the various layers of carbon fibers are manually applied, allowing us to position them precisely where desired, thereby maximizing both rigidity and lightness. While lightness has always been one of our priorities, with this bike we have chosen to prioritize stiffness, focusing on the area around the bottom bracket and the lower suspension link. The chainstays have also been modified and reinforced compared to previous generations. Despite these changes, it remains one of the lightest enduro bikes on the market.

These frames use our patented ZERO SUSPENSION SYSTEM

Which is comprised of two links which have been completely redesigned compared to previous models. In fact the time and effort dedicated to the rear suspension system for this model has been significant, culminating in completely reworked kinematics. We’ve also fitted a longer stroke shock which in turn offers a plusher ride compared to previous models. An added value is that we’ve worked hand in glove with our shock partners throughout the development process to perfect the shock tune straight from the factory. In short, the Foxy is now plusher and more enduro than ever before whilst still being very effective on the climbs.
