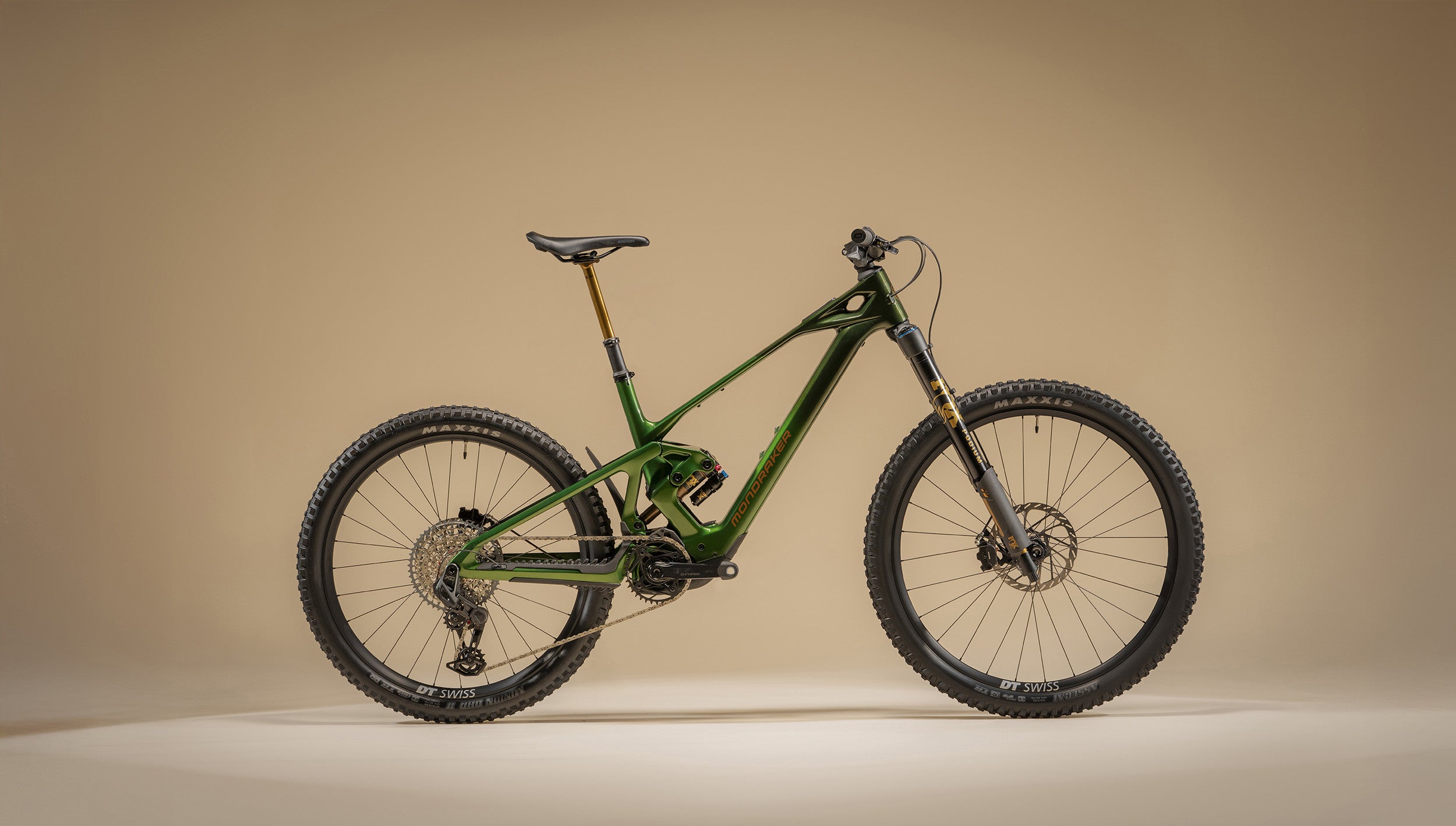

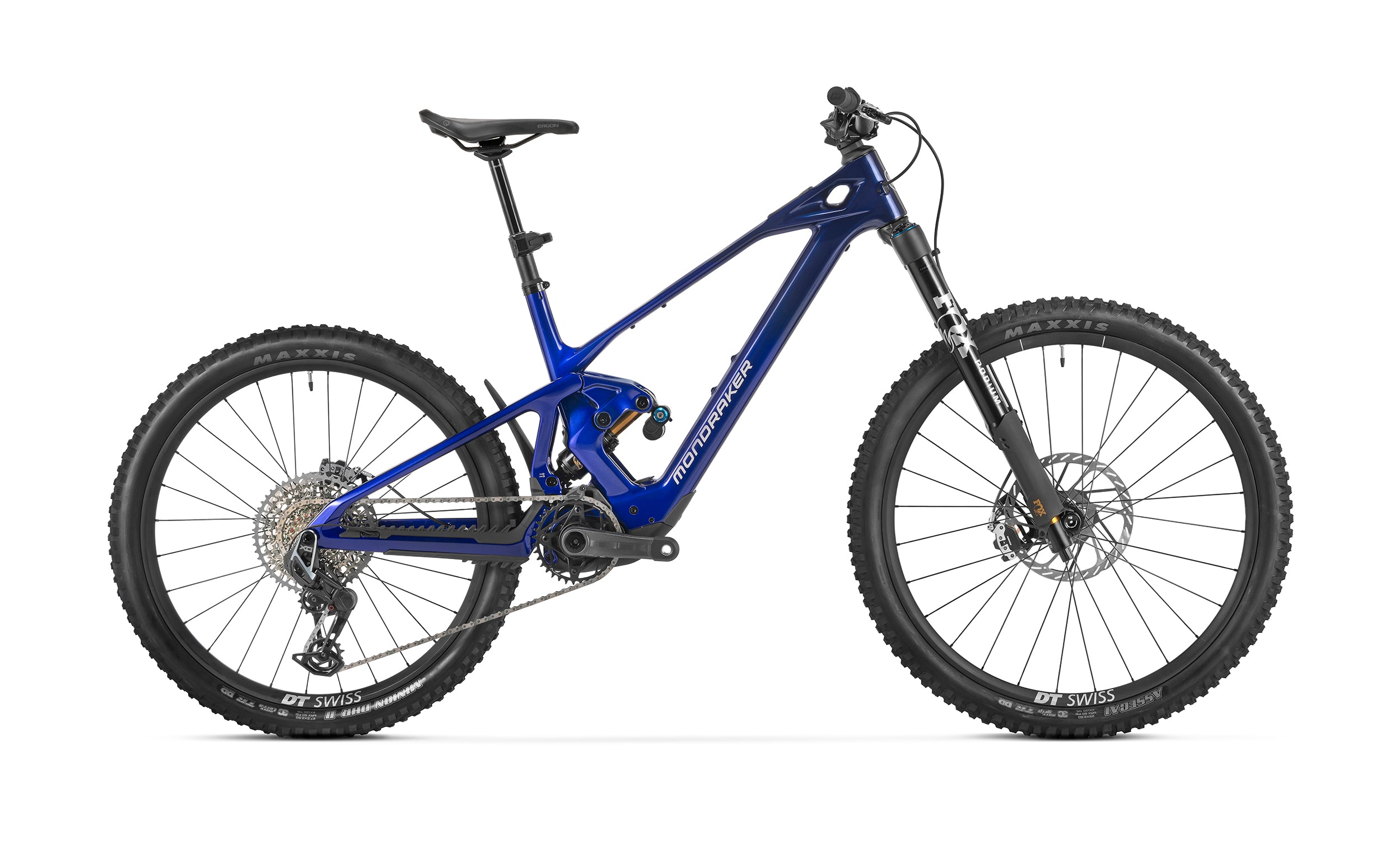

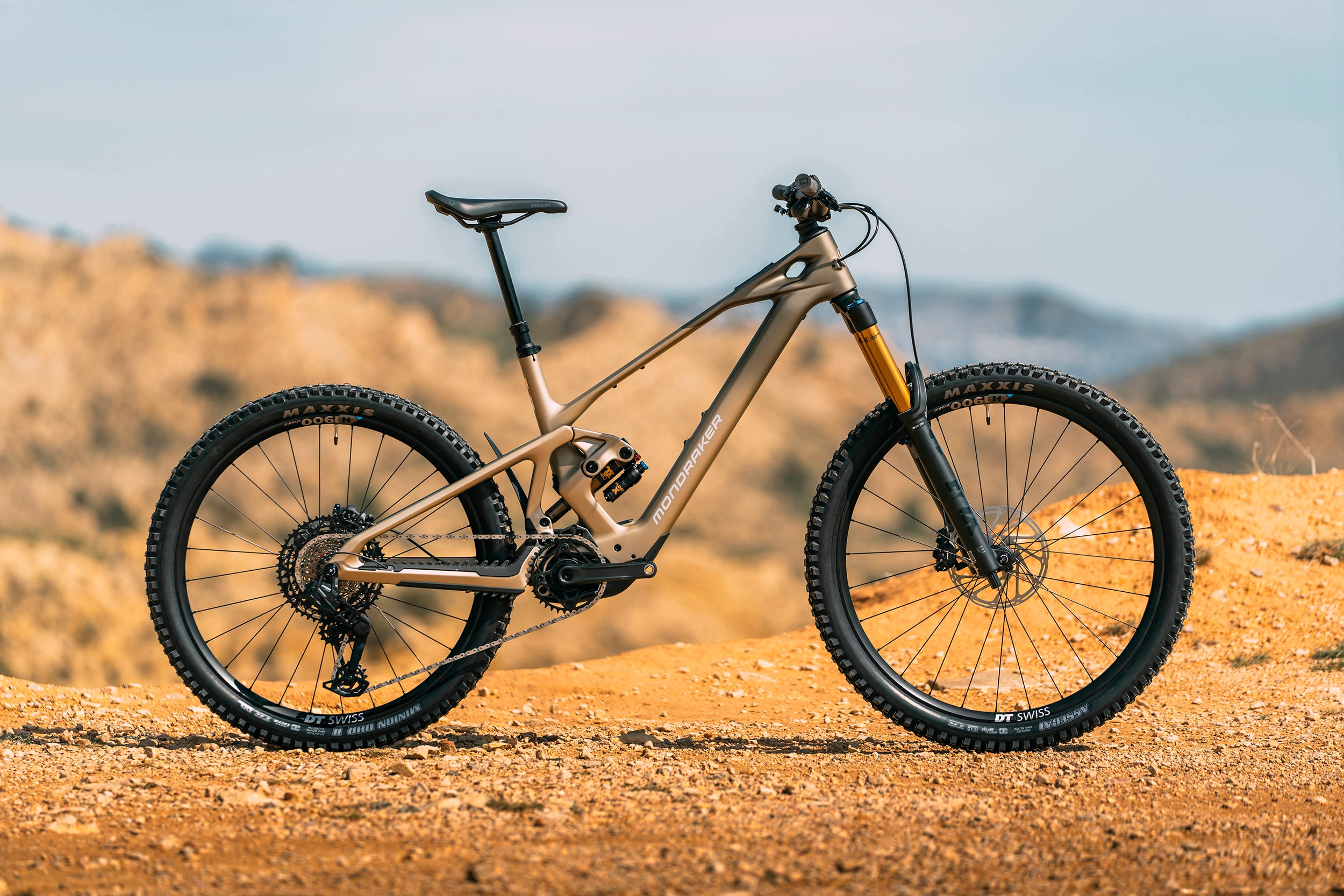

Announcing the all-new ZENDIT
The flagship Mondraker e-bike that boasts a new level of performance, achieved from the latest frame design and ZERO suspension kinematics, with seamless integration of the powerful new Avinox drive system.
Zendit was created for those who see the mountains as a challenge, as a place to push the boundaries. A bike with character, energy, and an almost instant response to every challenge. When the slope steepens, the ride gets faster and the terrain becomes unpredictable, everything falls into place. Zendit unleashes its full potential.
Feel the freedom of seamless power and unrivalled performance. Lean into every ride with the confidence and determination of being in total control, even in the most demanding situations.
STEALTH AIR CARBON THE NEXT EVOLUTION
Rather than adapting an existing platform, the ZENDIT frame was designed to house the most advanced motor system on the market.
This frame is highly advanced in both design and manufacture. For the first time 6-Axis CNC machines are used for frame drilling and finishing in place of hand finished frames.
suspension kinematics
The ZERO suspension kinematics are completely revised to reflect what the Avinox motor can output. There is more support and a more active suspension action to make sure the increased power gets to the trail.
A 36-tooth chainring further enhances drivetrain durability, whilst optimised Anti-Squat figures maintain a balanced, efficient ride with every pedal stroke.

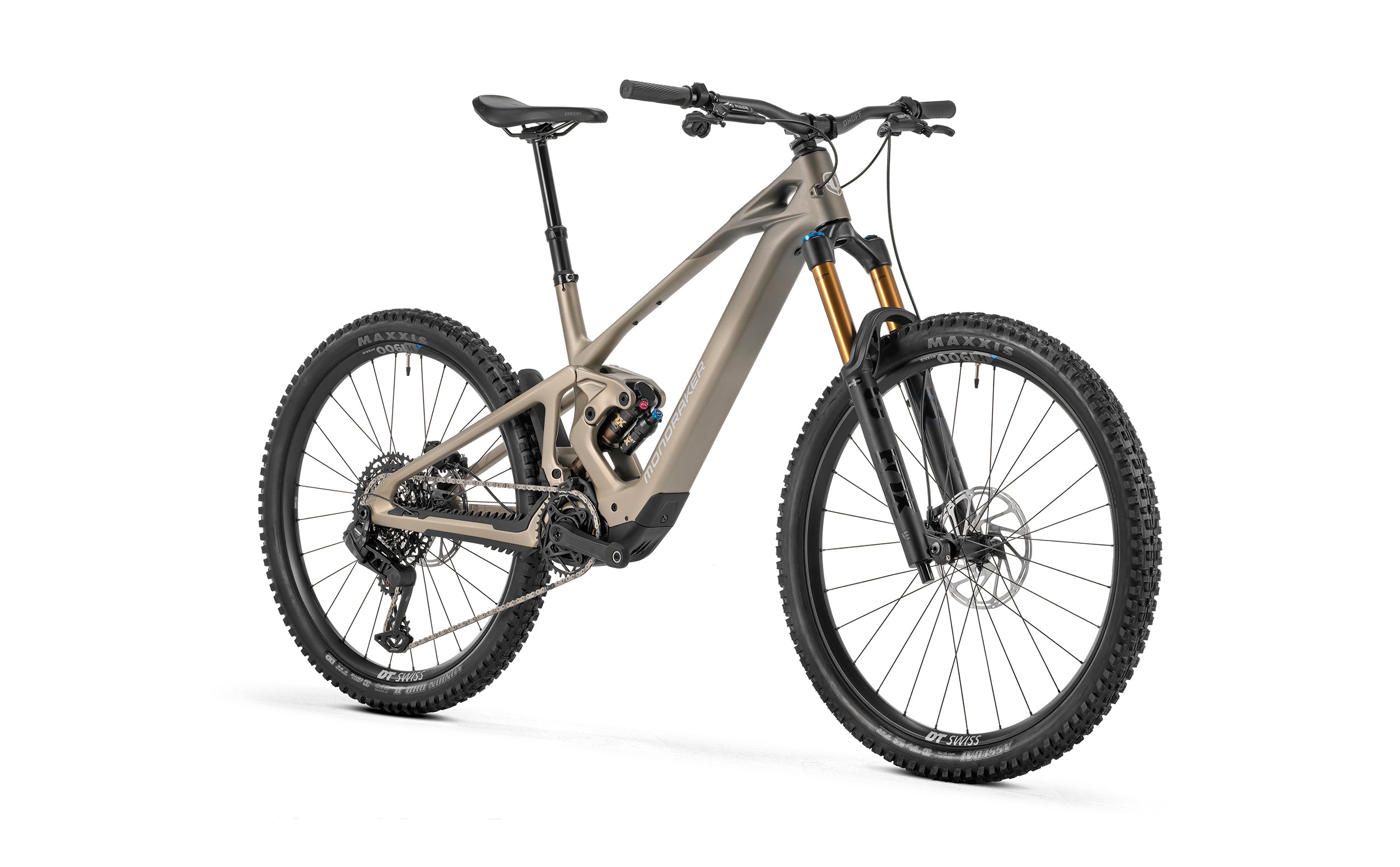

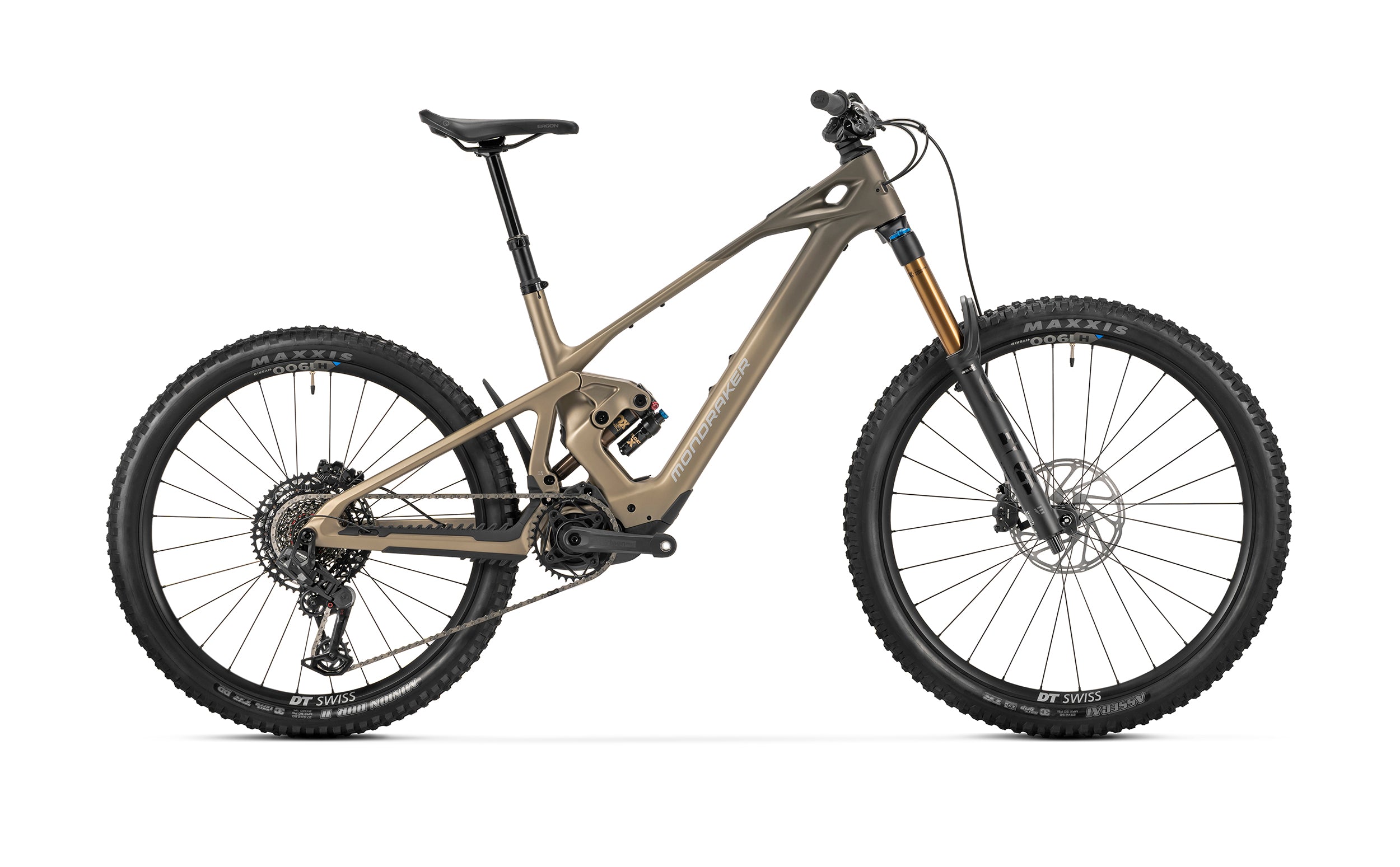

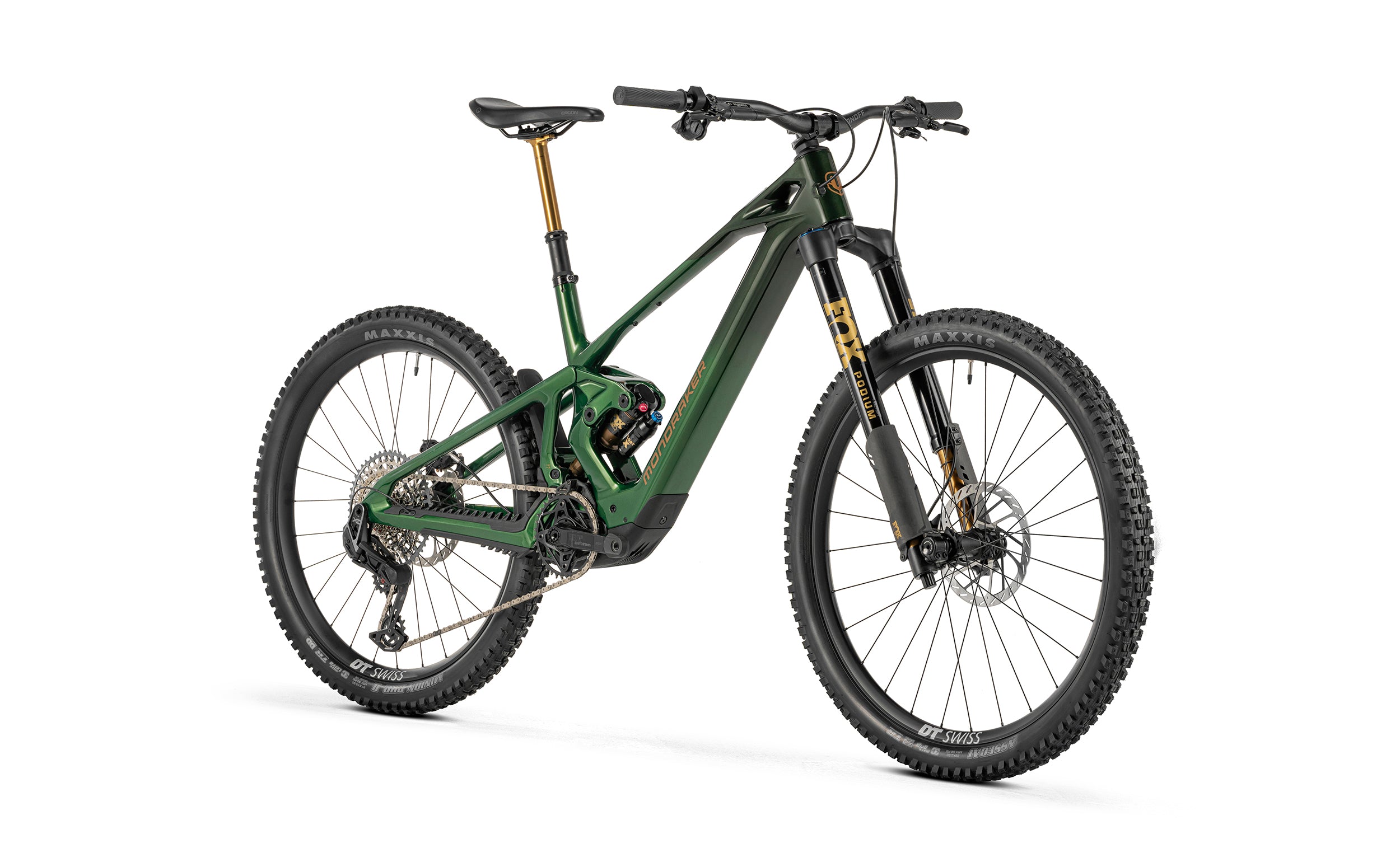

Mondraker and Fox have worked closely to offer the best performance for ZENDIT in terms of rear suspension. The latest Fox Float X shocks on the RR and RR S models as well as the latest Fox Float X2 shock on the XR model have a specific tunning adapted to the kinematics of the bike, maximizing its performance and ride feel.
KINEMATICS IN NUMBERS

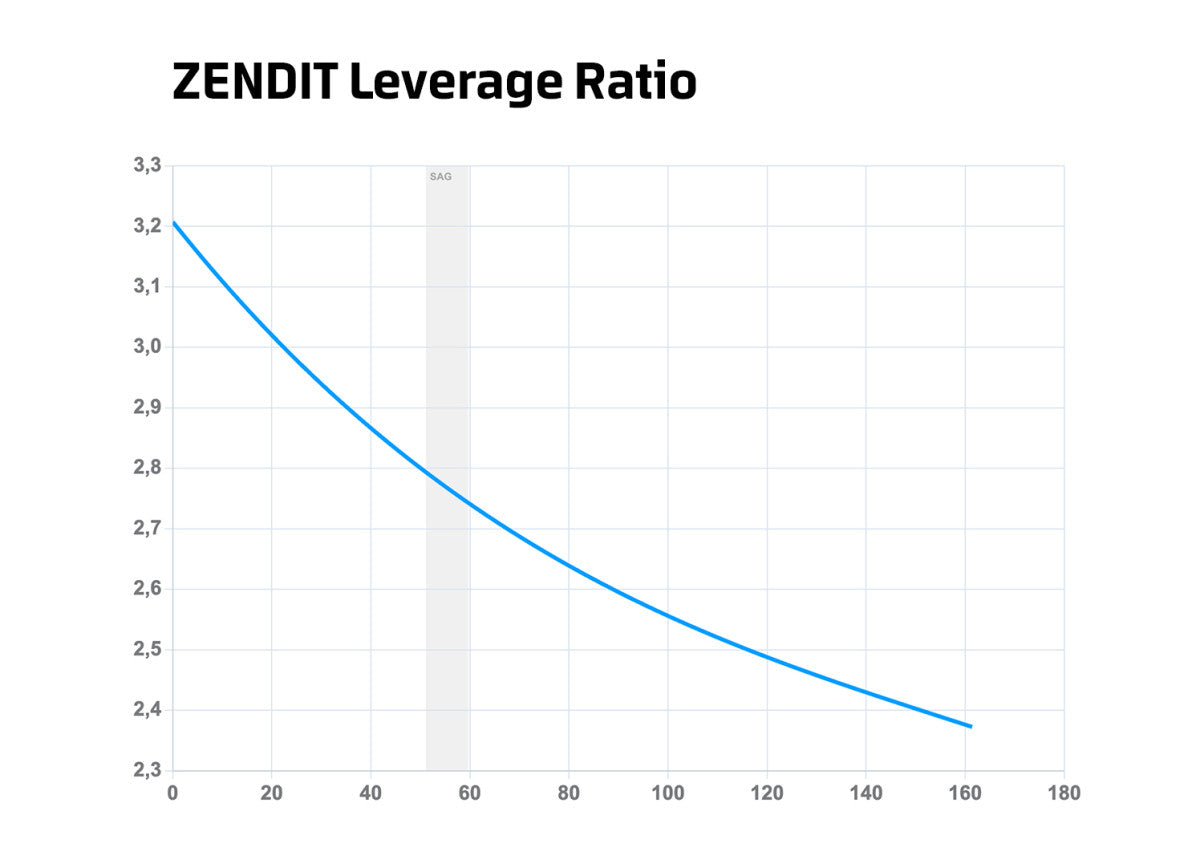

ZENDIT leverage ratio shows 27% progression with a 205x65mm rear shock. Ideal for the new generation larger volume air shocks.

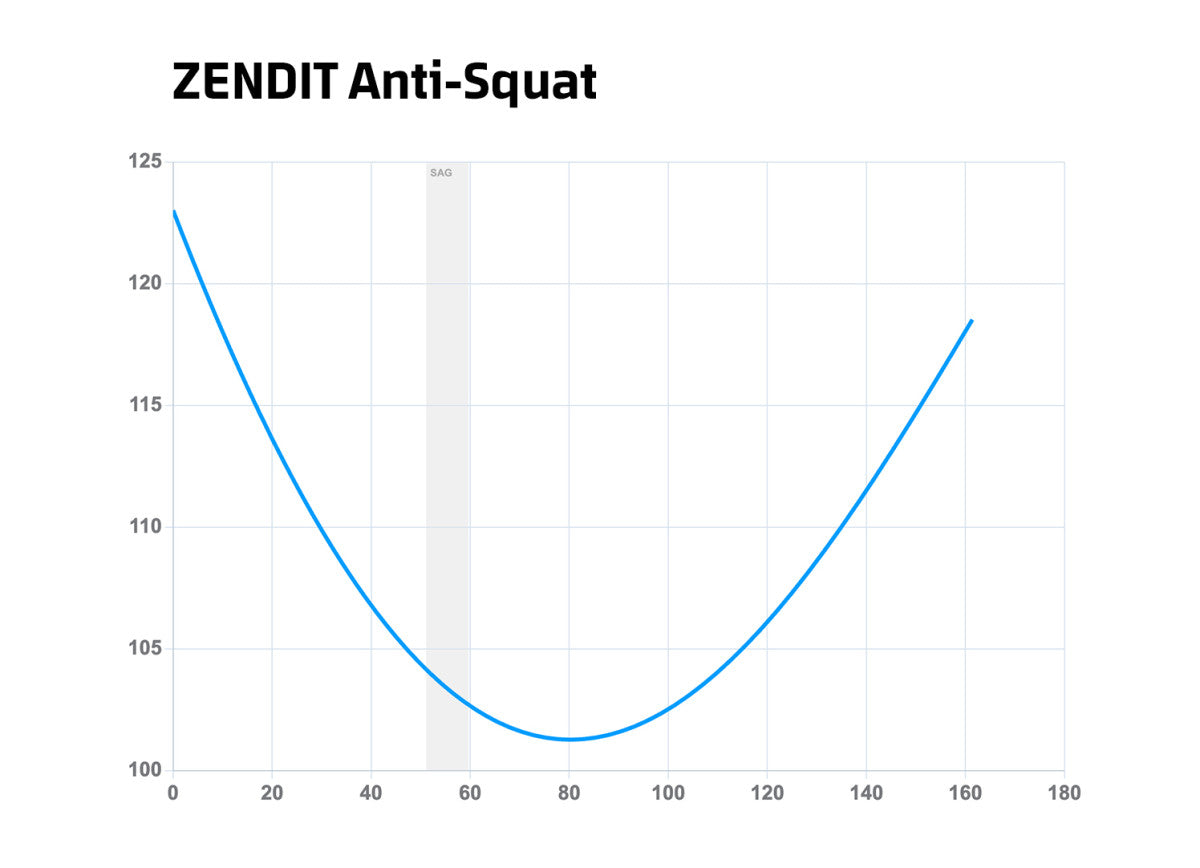

ZENDIT anti-squat at sag is approx 105%, ideal for the longer travel application.

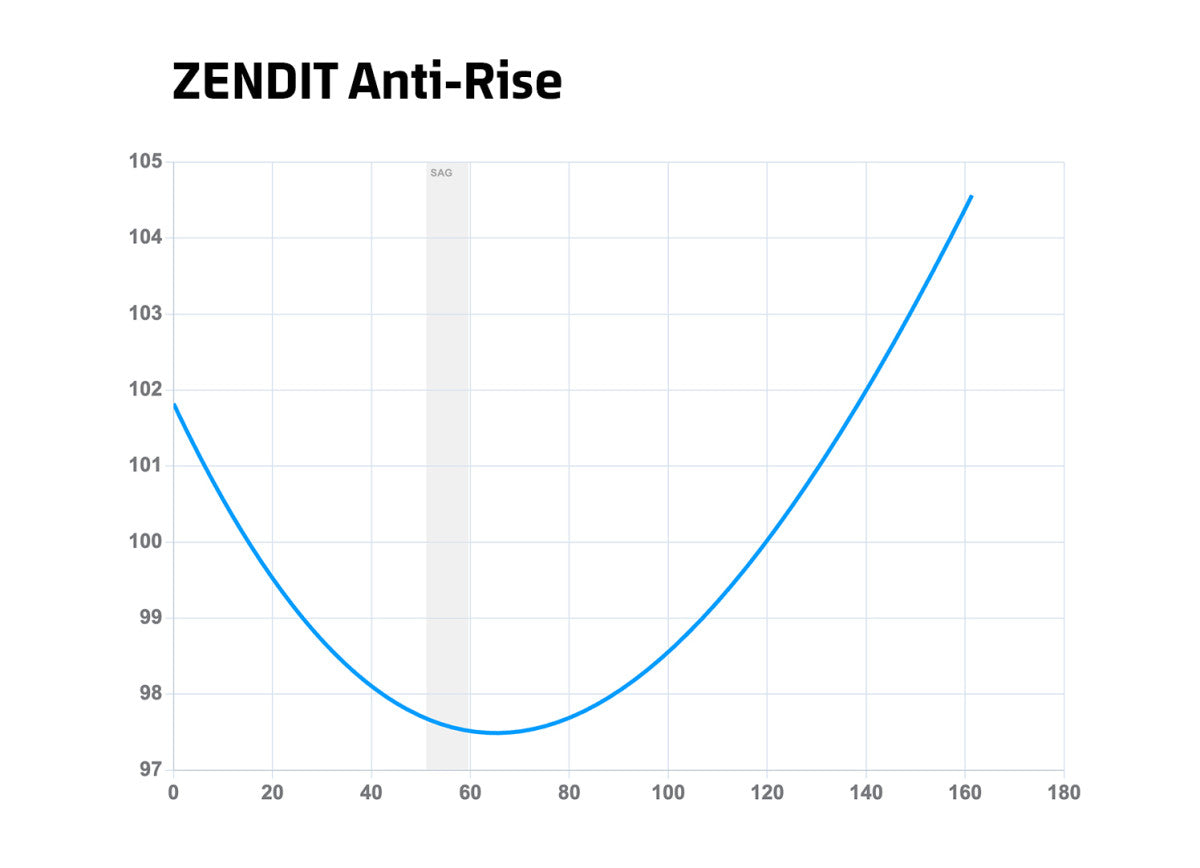

ZENDIT anti-rise at sag is approx 99%. This keeps maximum rear wheel traction when braking and the brake force has minimum effect on suspension.

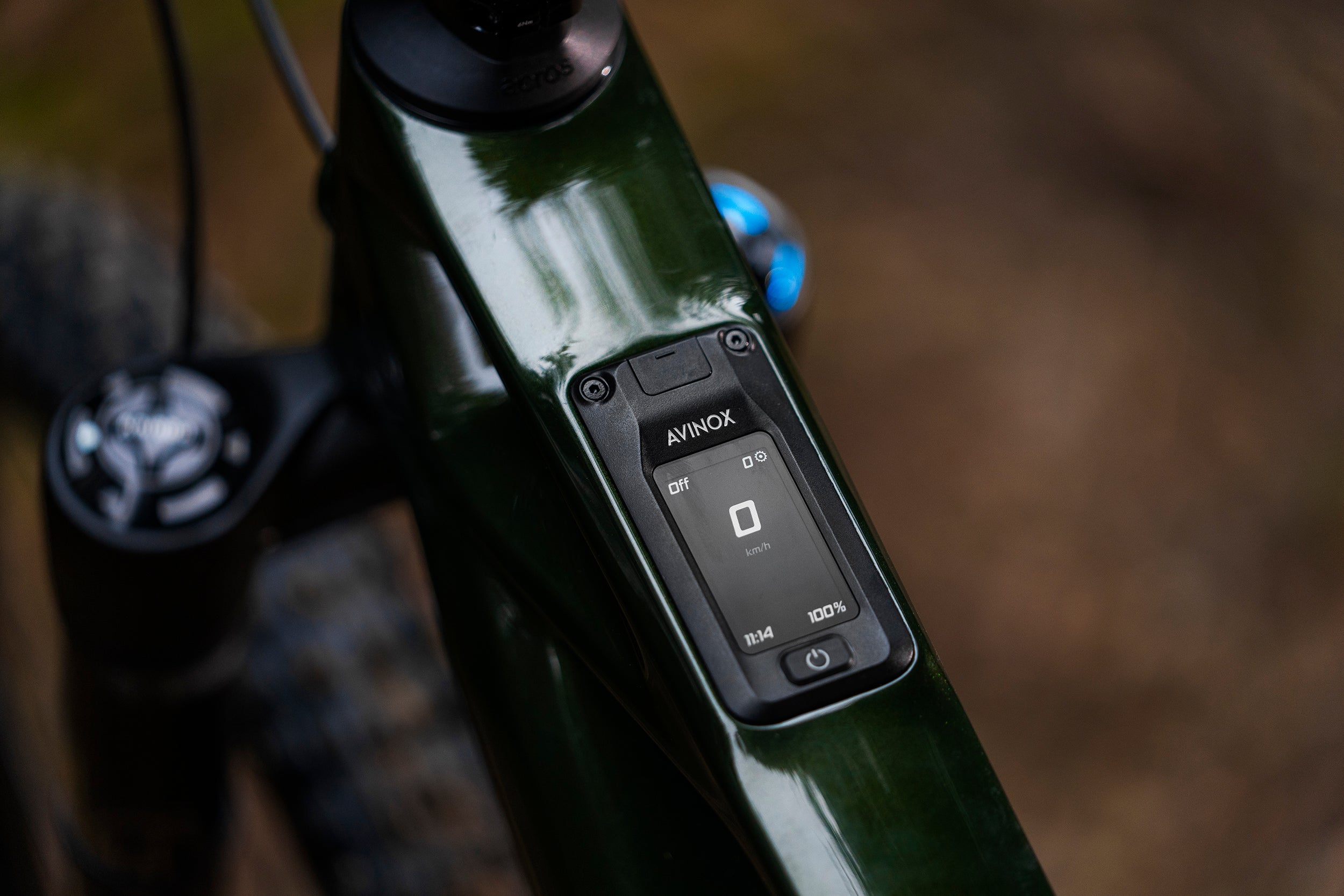

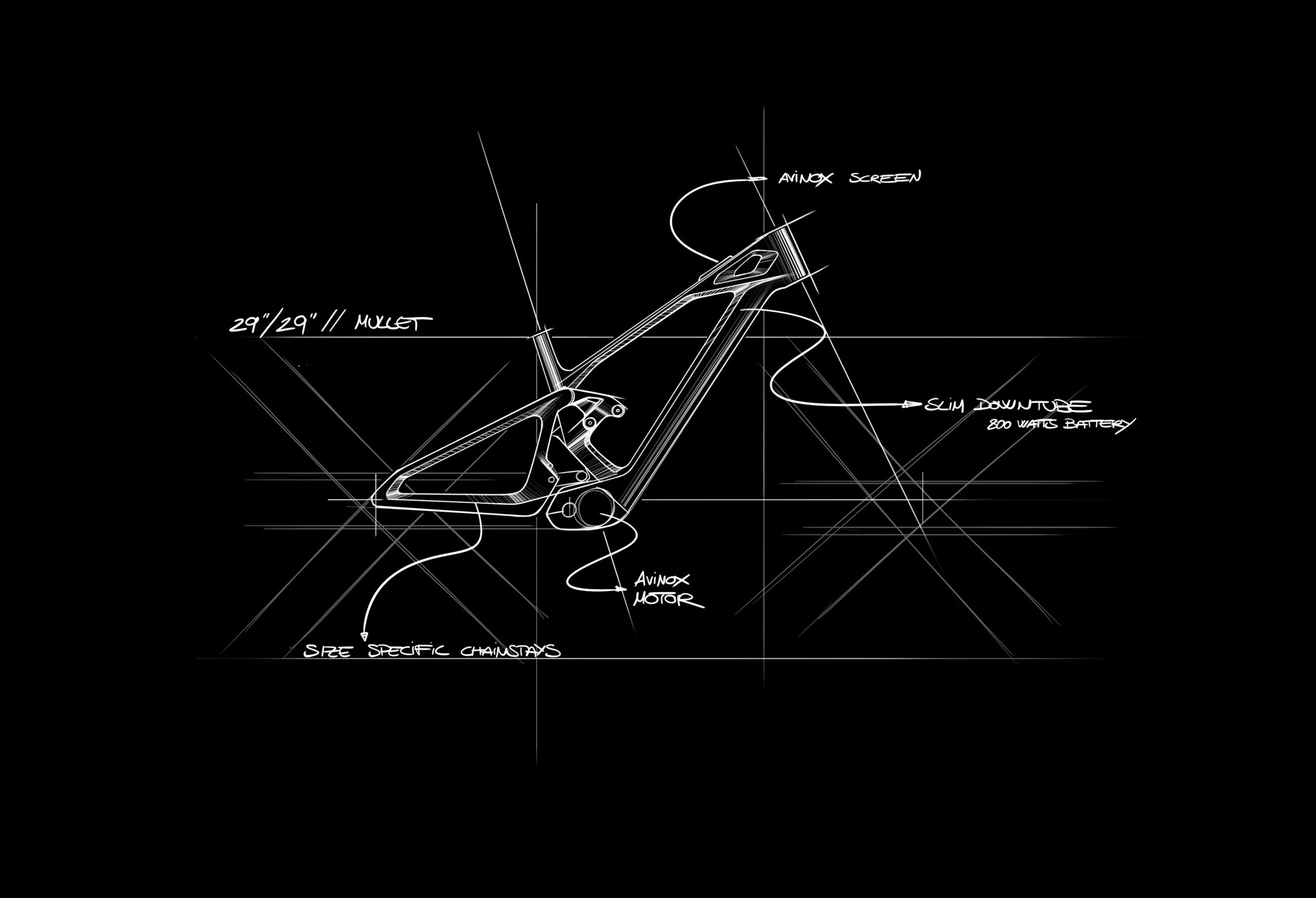

Zendit is constructedfrom the ground up around the latest avinox drive system
Up. Over. Along. Down. It doesn’t matter.
With 165mm of rear wheel travel, a mixed wheel configuration as standard and the next evolution of the ZERO suspension platform, ZENDIT is by far the most capable Mondraker bike to date.
NEW SEALED BEARINGS
ZENDIT takes advantage of everything learnt from the MFR DH development team and uses the same pivot system as the new and proven Summum DH frame.
With single-size Enduro Max bearings throughout, maintenance becomes easier and two additional rubber seals help the bearings last longer.
Why save all the fun for the descent? You no longer have to wonder what’s possible.
This is not just an e-MTB to winch to the top of the mountain - ZENDIT can claw its way up the steepest and most technical climbs out there.t
PROPORTION MATTERS
As with other bikes over 150mm of rear wheel travel, ZENDIT comes stock with a mixed wheel configuration - it’s the best overall performance for the aggressive riding. But it can easily rock 29’’ wheels for even more climbing capability!
ZENDIT features proportional chainstay lengths depending on the sizes. S; M and M/L sizes offer the same 450mm chainstay length, whereas the L and XL models are 5mm longer at 455mm. By slightly adjusting pivot placement in all sizes, the same leverage ratio is achieved throughout. So, no matter what size you need, you get the same ride qualities.
To use 29’’ wheels, there is a lower flip-chip that increases chainstay length by 7mm, but crucially does not have any effect on the suspension kinematics. Bottom Bracket height and key angles remain the same too.
How cool is that?
