Mondraker LEVEL R Chili Red
Mondraker LEVEL R Chili Red
Mondraker LEVEL R Chili Red Front
Mondraker LEVEL R Chili Red Front

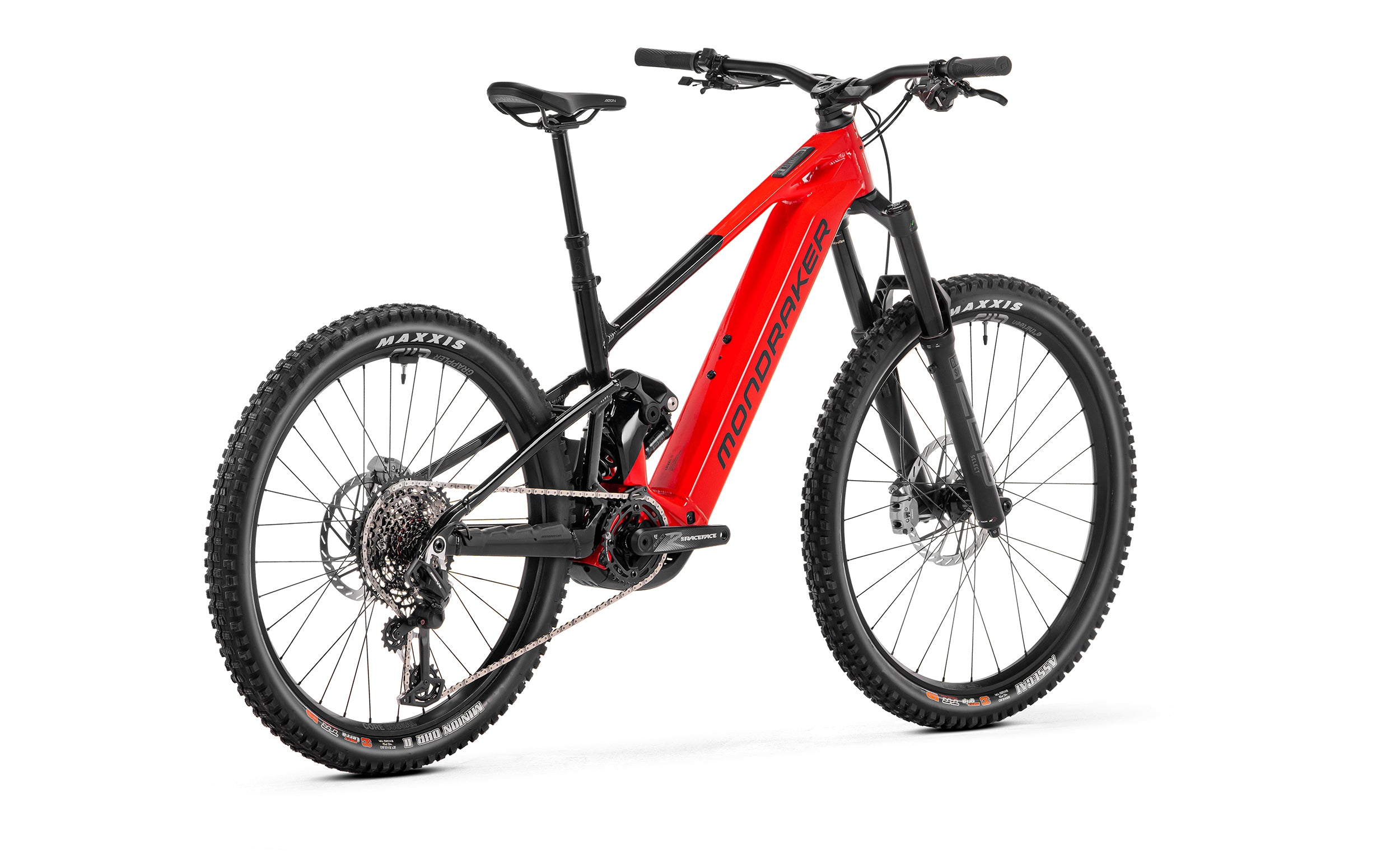

Mondraker LEVEL R Chili Red Rear
Mondraker LEVEL R Chili Red Rear

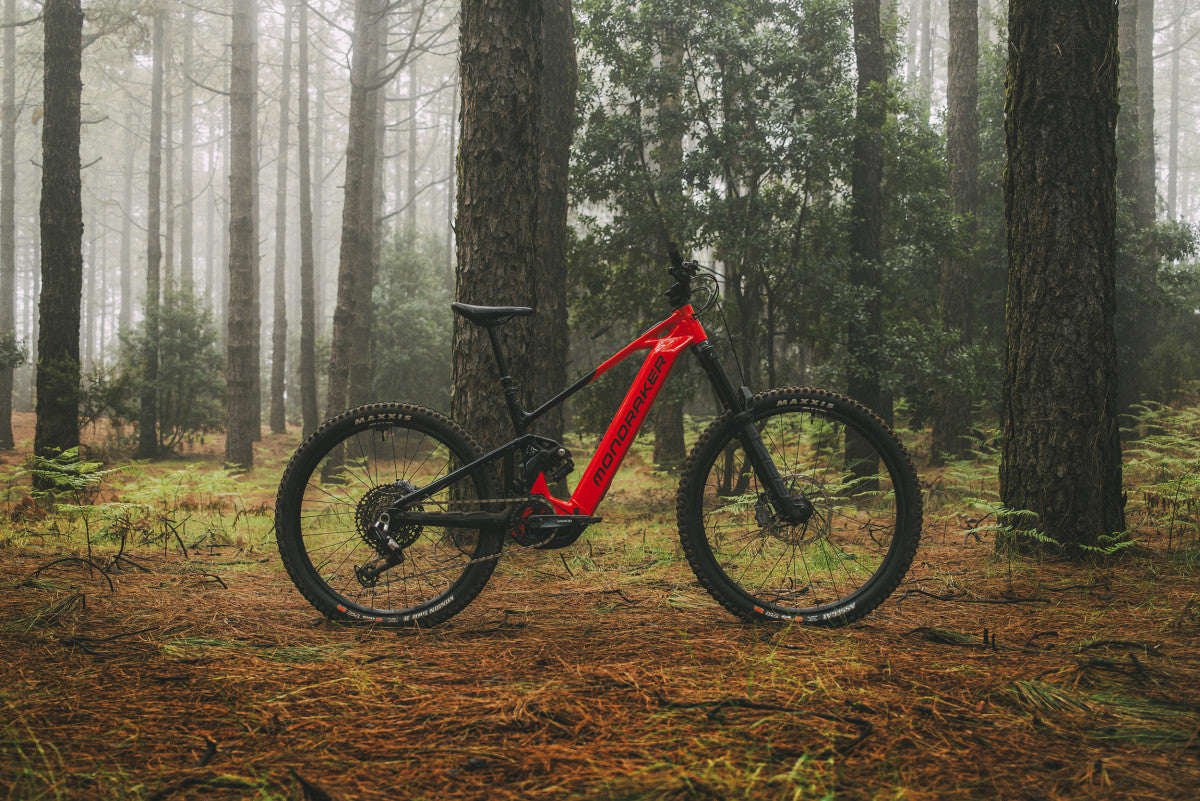

Mondraker LEVEL R Chili Red In The Woods
Mondraker LEVEL R Chili Red In The Woods

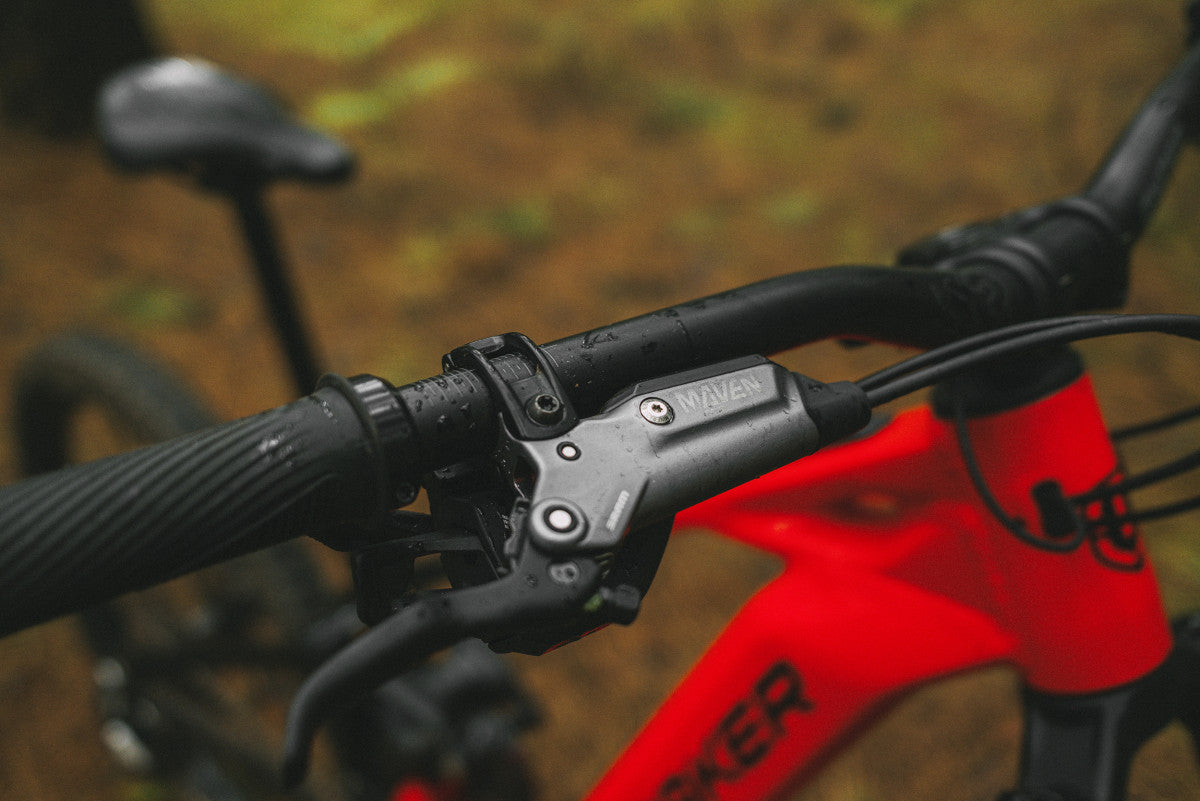

Mondraker LEVEL R Chili Red Brakes
Mondraker LEVEL R Chili Red Brakes

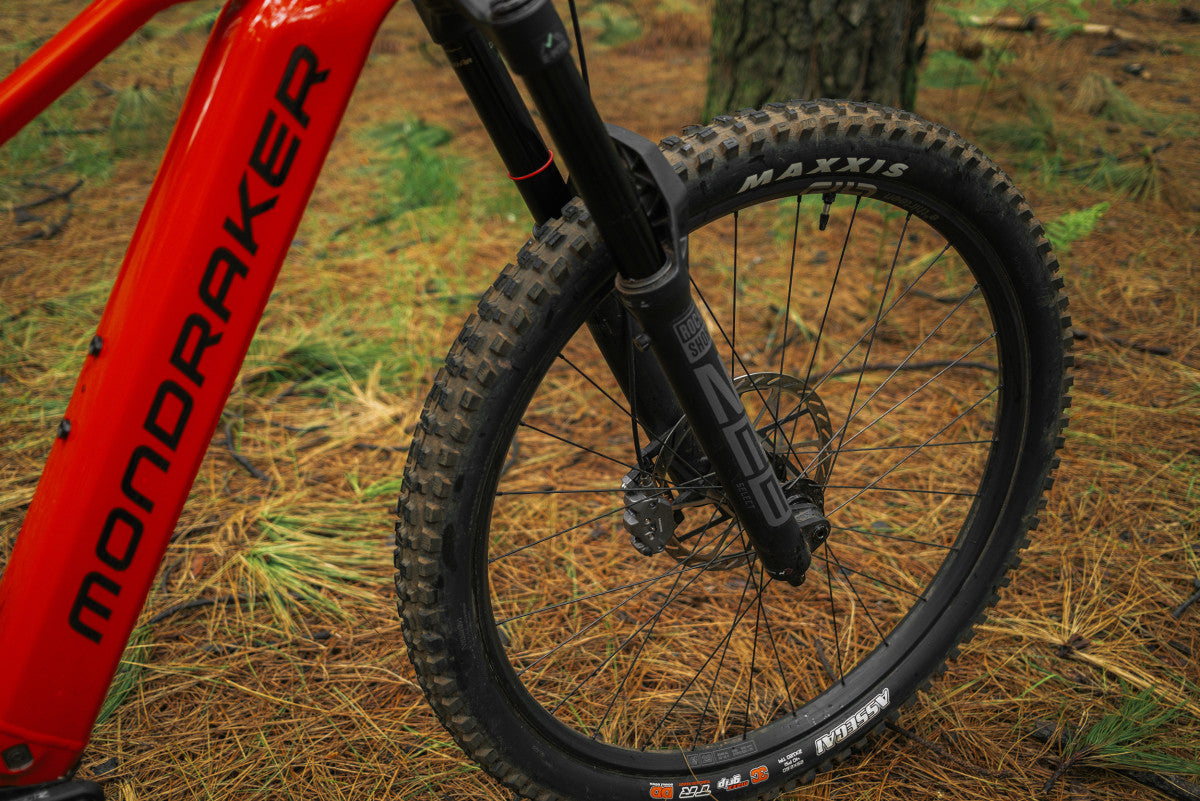

Mondraker LEVEL R Chili Red Zeb Forks
Mondraker LEVEL R Chili Red Zeb Forks

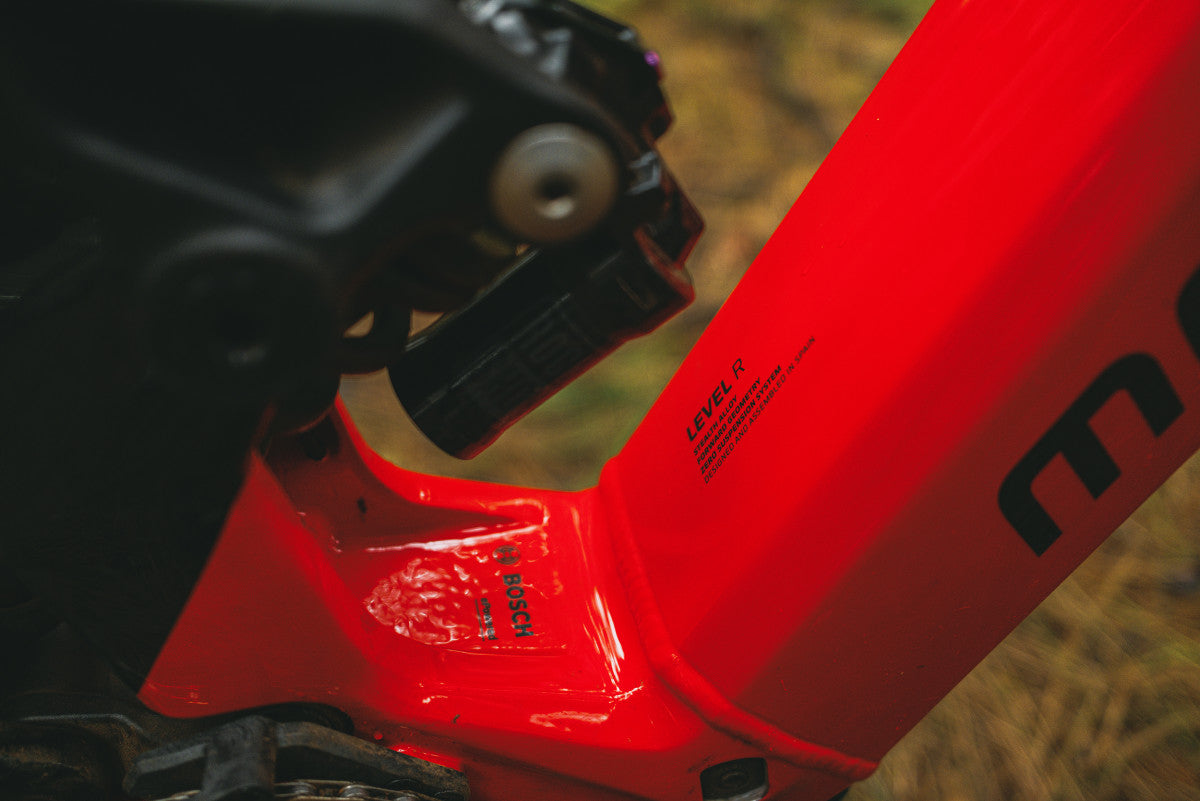

Mondraker LEVEL R Chili Red Linkage
Mondraker LEVEL R Chili Red Linkage
Mondraker LEVEL R Chili Red
Mondraker LEVEL R Chili Red Front
Mondraker LEVEL R Chili Red Rear
Mondraker LEVEL R Chili Red In The Woods
Mondraker LEVEL R Chili Red Brakes
Mondraker LEVEL R Chili Red Zeb Forks
Mondraker LEVEL R Chili Red Linkage

Mondraker LEVEL R Chili Red

£ 5,999.00
Tax included.
  • FREE Delivery on orders over £40
  • Standard delivery £4.99
  • Whippet delivery £7.99

T’s&C’s apply

At Cykel House, we are committed to bringing you the best products at the best prices. If you find a product cheaper elsewhere, contact us via email or via live chat and we'll see if we can match that price.

We do have some criteria to meet when offering a Price Match.

  • To request a Price Match, provide the URL to the competitor’s lower price. If in-store, you can show us on your phone or a printed copy.
  • The competitor must be a UK-registered shop. All our products are brand new and genuine, therefor we cannot match prices from private sellers, auction sites, or international businesses.
  • The product must be identical to ours in condition, model, colour, and size, and the competitor must have it in stock at the time of the Price Match.

  • The competitor’s price must include VAT and delivery charges, and be listed on their website. We cannot match prices combined with other offers, including vouchers, clearance, or discontinued items.

  • Price Match offers cannot be applied after the sale is complete.

  • We cannot offer Price Matches for orders using insurance vouchers or on products purchased through finance or cycle-to-work schemes; these items must be paid in full using our usual payment methods.

  • If your Price Match is accepted, we will provide a discount code or link to complete your order. Only one discount code can be used per order.

  • All Price Match requests are subject to Cykel House's discretion, and we reserve the right to decline, alter, or withdraw this offer at any time.

Please note, whilst we can Price Match the majority of products, sending this information does not guarantee a price match is viable.

Email us your enquiry to: Hello@cykelhouse.com or hit the live chat.

More. We all want more.

More travel, more power, more range. We want to push our limits and get better as riders to tackle rowdier trails, climb faster and get more runs in in the time available. To do that, you only need one thing: an enduro bike. The most enduro bike of them all.

PEAK ENDURO IS HERE.

Our most popular, most advanced, full-power enduro eMTB is back, and it’s been seriously levelled up! With 180mm/170mm travel, the latest Bosch Performance Line CX Gen 5 motor (kicking out 100Nm of torque), a high-capacity 800Wh removable battery and the option to add a 250Wh range extender, the new Level is built to push boundaries like never before.

RADICAL IS THE WORD

It’s hard to pick a single word that defines the way you’ll feel when you hit that first super-gnarly trail on your new Level, but “radical” is probably it. Imagine the lines you'll carve with top-of-the-line suspension offering this much travel together with burly tyres gluing you to the ground. Basically, Level makes you a better rider on your favourite trails.

Specifications

  • Frame

    Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers



    Sizes

    S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm


    Rear shock

    RockShox Vivid Coil base, 205x65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings



    Shock settings

    C26 compression, R23 rebound. Spring rate: S size 350 lbs, M size 400 lbs, ML size 450 lbs, L size 500 lbs, XL size 500 lbs


    Fork

    RockShox ZEB Select Charger RC 29, 180mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload



    Headset

    Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º


    Stem

    Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore



    Handlebar

    Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.


    Grips

    Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size



    Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)


    Saddle

    FIZIK Terra Aidon X5 145mm



    Front brake

    Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads


    Rear brake

    Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads



    Brake lever

    Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust


    Rims

    e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear



    Spokes

    e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers


    Front hub

    e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts



    Rear hub

    e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub


    Front tire

    Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead



    Rear tire

    Maxxis Minion DHR II 27’5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead


    Crankset

    Race Face Aeffect ebike, All sizes: 160mm



    Rings

    Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55


    Chain

    Sram 70 Eagle T-Type, 12s, Powerlock



    Rear derrailleur

    Sram 90 Eagle T-Type, 12s


    Shift levers

    Sram 90 Eagle, 12s, T-Type Actuation, single click



    Casette

    Sram XS-1270, 10-52T, T-Type, 12s


    Weight

    26,7 kg



    Display

    Purion 400 / Bosch Mini Remote / Bosch System Controller


    Motor

    Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)



    Battery

    Bosch Powertube 800Wh
