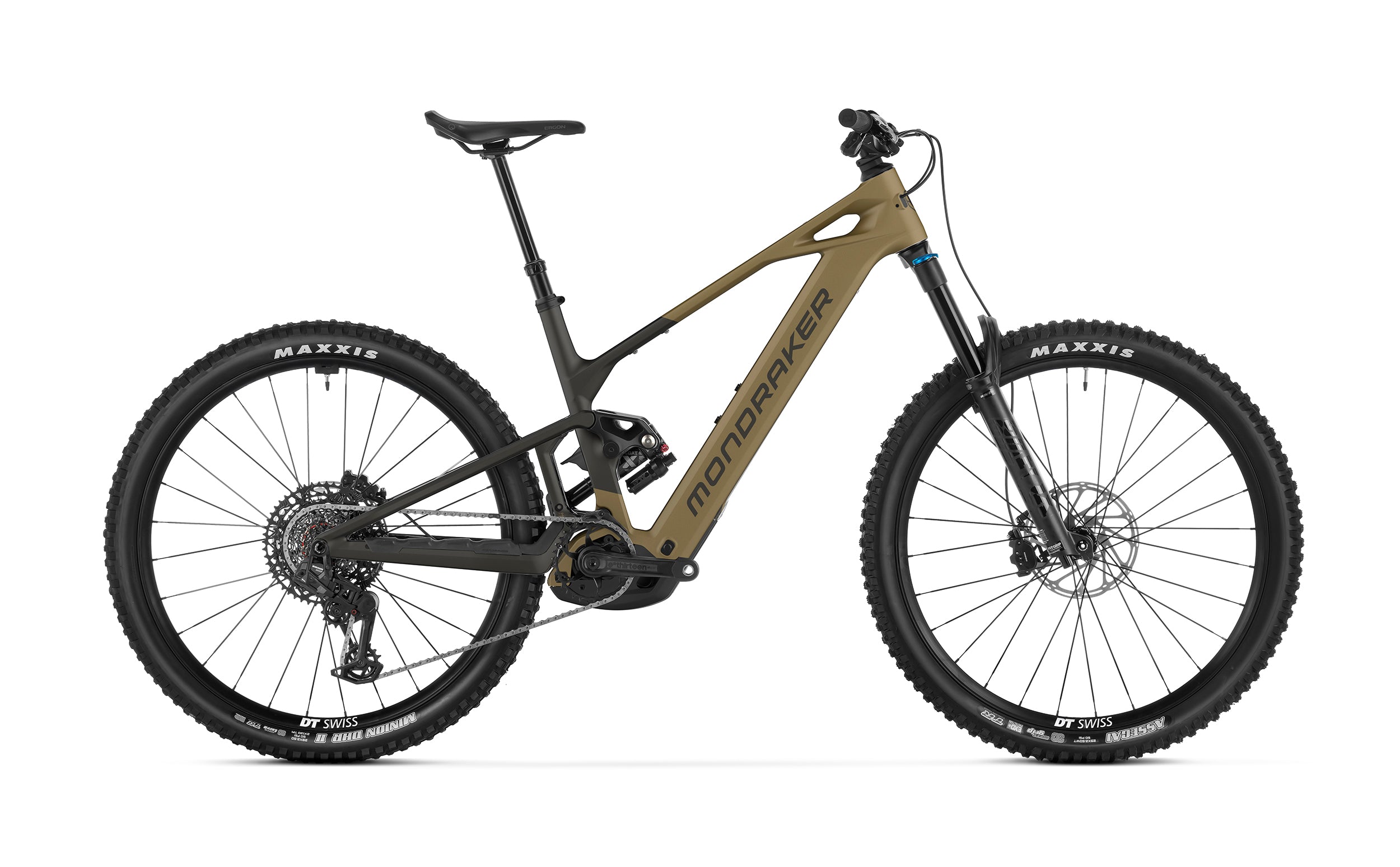

Mondraker Crafty Carbon R Relic Metalic

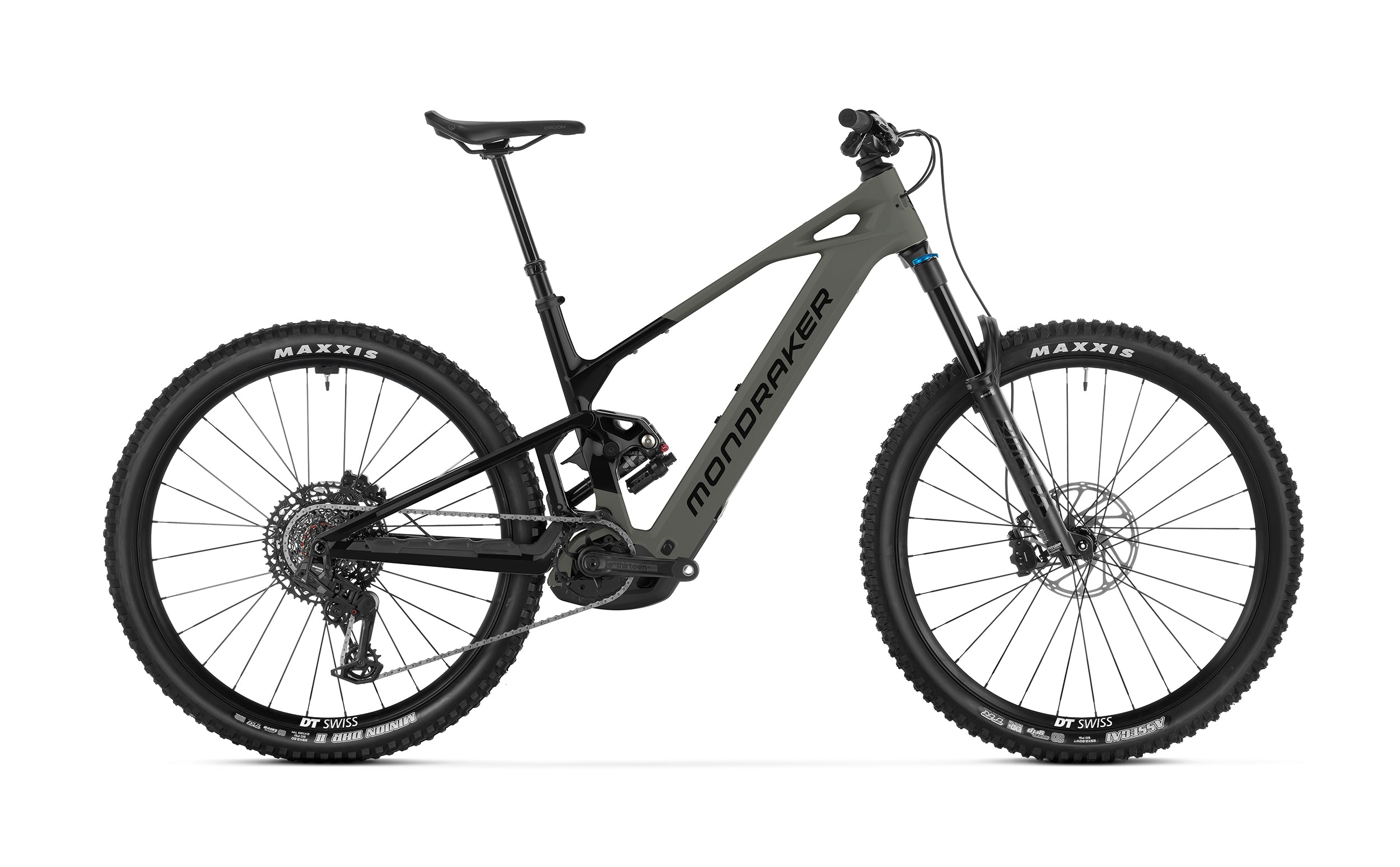

Mondraker Crafty Carbon R Greyhound Grey
Mondraker Crafty Carbon R Relic Metalic
Mondraker Crafty Carbon R Greyhound Grey

Mondraker Crafty Carbon R

£ 6,799.00
Tax included.

Pairs well with

The Crafty has always held a unique place within Mondraker.


It sits right in the middle between our agile, shorter-travel bikes and our most extreme downhill machines. Crafty sits between these two worlds, with 150mm of travel and a platform designed to offer the best possible balance.


That’s why it has become our most popular e-bike and one of the leading names in the e-mtb category. A capable, balanced bike to enjoy whatever trails you like to ride.



BOSCH CX AND CX-R MOTORS NOW WITH 120 Nm*

Crafty’s history has always been one of evolution. Crafty has been the benchmark among high-performance e-bikes for one very simple reason: it has always managed to strike the perfect balance between power, control and riding feel.


That is why this platform makes the most of the Bosch Performance Upgrade 2.0 for the Bosch CX-R motor.

From May 2026, this update will allow the maximum motor torque to be increased from 100 Nm to 120 Nm on any 5th-generation Bosch CX or CX-R motor, as well as increasing the maximum pedal assistance from 400% to up to 600%.


More torque to tackle the toughest climbs. More push in technical sections. More acceleration for those tricky sections. More power when the terrain gets tougher.


But the difference isn’t just in the numbers.


*All Bosch Gen 5 CX and CX-R motors will be eligible for the update.



Frame

Crafty Stealth Air Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.


Sizes

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm


Rear shock

Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings


Shock settings

CS50 compression, RL70 rebound, 1,1 Bleed, Rezi B60, LML, MCU, 0.2 Volume Spacer


Fork

Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload


Headset

Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock


Stem

Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore


Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.


Grips

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size


Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)


Saddle

Ergon SM-10


Front brake

Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads


Rear brake

Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads


Brake lever

Sram Maven Base , Directlink and lever pivot bushings, tools-free reach adjust


Rims

DT Swiss Hybrid H 1900 SPLINE, aluminum, hooked / crotchet tubeless TC, 30mm internal width, tubeless ready, 28 spokes.



Spokes

DT Swiss Straightpull spokes, DT Hybrid I, black


Front hub

DT Swiss 370, Boost 15x110mm, IS 6 bolts


Rear hub

DT Swiss 370 with 18T Ratchet LN System, Boost 12x148mm, IS 6 bolts, HG freehub


Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead


Rear tire

Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD casing, 2x120TPI, folding bead


Crankset

E.13 Helix Core E*Spec Plus, All sizes: 155mm


Rings

Sram Eagle 34T T-Type, direct mount, steel, CL55


Chain

Sram GX Eagle T-Type, 12s Flattop, Powerlock


Rear derrailleur

Sram S1000 Eagle AXS T-Type, 12s


Shift levers

Sram Eagle AXS Pod MMX, 12s


Casette

Sram XS-1270, 10-52T, T-Type, 12s


Display

Kiox 400C / Bosch Mini Remote


Motor

Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)


Battery

Bosch Powertube 800Wh
