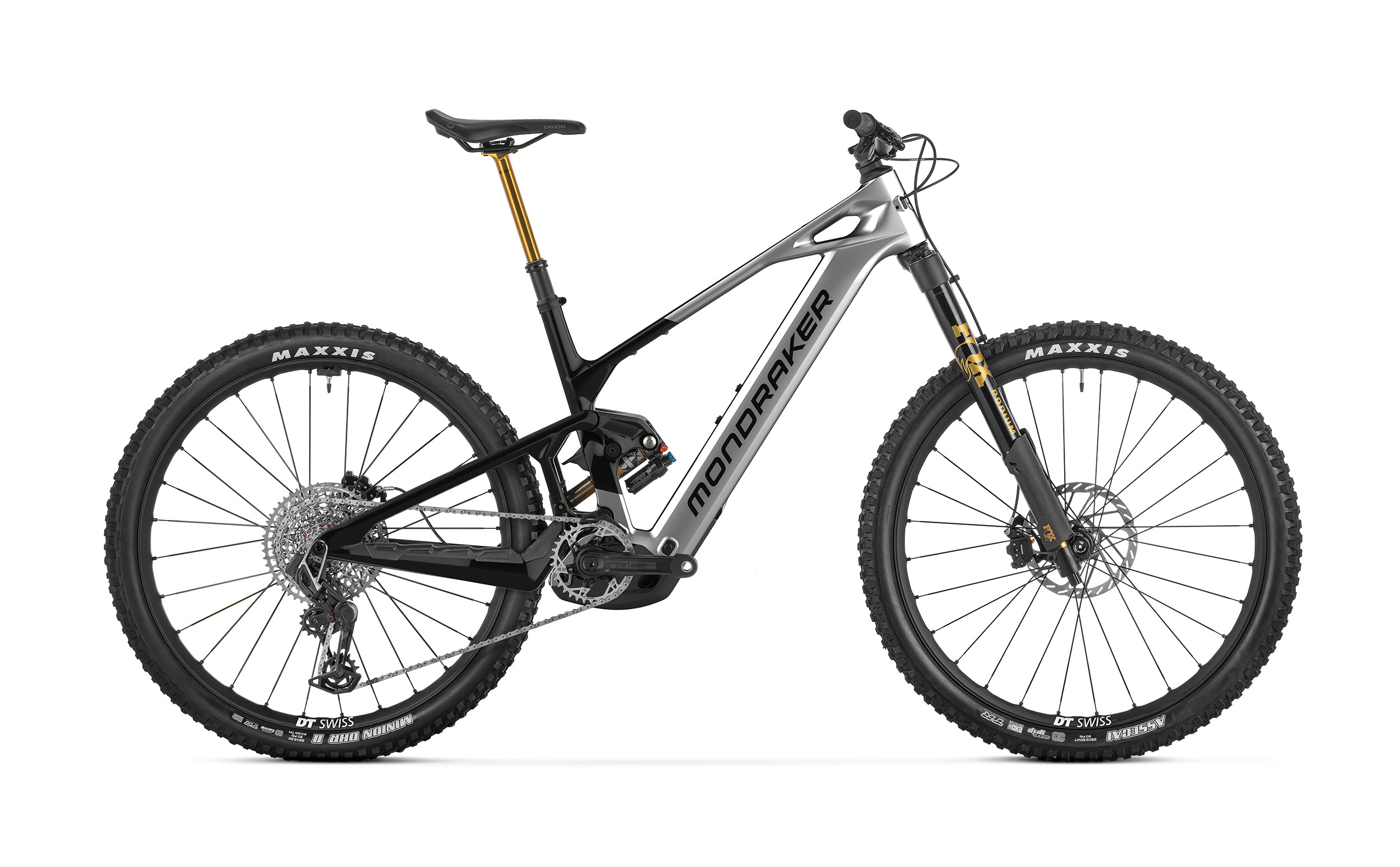

Mondraker Crafty Carbon RR S Silverflash
Mondraker Crafty Carbon RR S Silverflash

Mondraker Crafty Carbon RR S Silverflash

Mondraker
£ 9,399.00
Tax included.

Pairs well with

TEN YEARS OF MONDRAKER’S MOST ICONIC E-BIKE

Some bikes define an era. Others an entire category.


Since its launch, the Crafty has become the benchmark of our e-mtb range. The Mondraker bike that thousands of riders have chosen to discover that an e-bike can be just as much fun going downhill as it is going uphill.


Crafty was born with a very clear idea: to create an e-bike capable of performing equally well in any situation. A bike for linking descents without worrying about how long and steep they are and for keeping on pedalling when the ride gets tough. A bike with an unrivalled riding feel that you can get the most out of, whatever your style.

Specifications

Frame

Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.


Sizes

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm


Rear shock

Fox Float-X Factory Kashima EVOL LV, 185x55mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings


Shock settings

CS50 compression, RL70 rebound, 1,1 Bleed, Rezi B60, LML, MCU, 0.2 Volume Spacer


Fork

Fox Podium 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload


Headset

Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock


Stem

Onoff S9 30mm 0º, Full CNC, 31.8mm barbore


Handlebar

Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.


Grips

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size


Seatpost

Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size L size: 155mm -180mm, L size: 155mm -180mm, XL size: 185mm -210mm


Saddle

Ergon SM-10


Front brake

Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads


Rear brake

Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads


Brake lever

Sram Maven Silver, SwingLink and lever pivot bearing, tools-free reach adjust


Rims

DT Swiss Hybrid HX 1700 Spline, 30mm internal width, welded aluminum, tubeless ready, 28 spokes


Spokes

DT Swiss Straightpull spokes, DT Hybrid III, black


Front hub

DT Swiss 350, Boost 20x110mm, IS 6 bolts


Rear hub

DT Swiss 350 Classic with 72T Ratchet DEG System, Boost 12x148mm, IS 6 bolts, XD freehub


Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead


Rear tire

Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD casing, 2x120TPI, folding bead


Crankset

E.13 Helix Core E*Spec Plus, All sizes: 155mm


Rings

Sram XX Eagle 34T T-Type, direct mount, steel, CL55


Chain

Sram GX Eagle T-Type, 12s Flattop, Powerlock


Rear derrailleur

Sram X0 Eagle AXS, T-Type, 12s


Shift levers

Sram Eagle AXS Pod MMX, 12s


Casette

Sram XS-1275, 10-52T, T-Type, 12s


Display

Kiox 400C / Bosch Mini Remote


Motor

Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)


Battery

Bosch Powertube 800Wh
