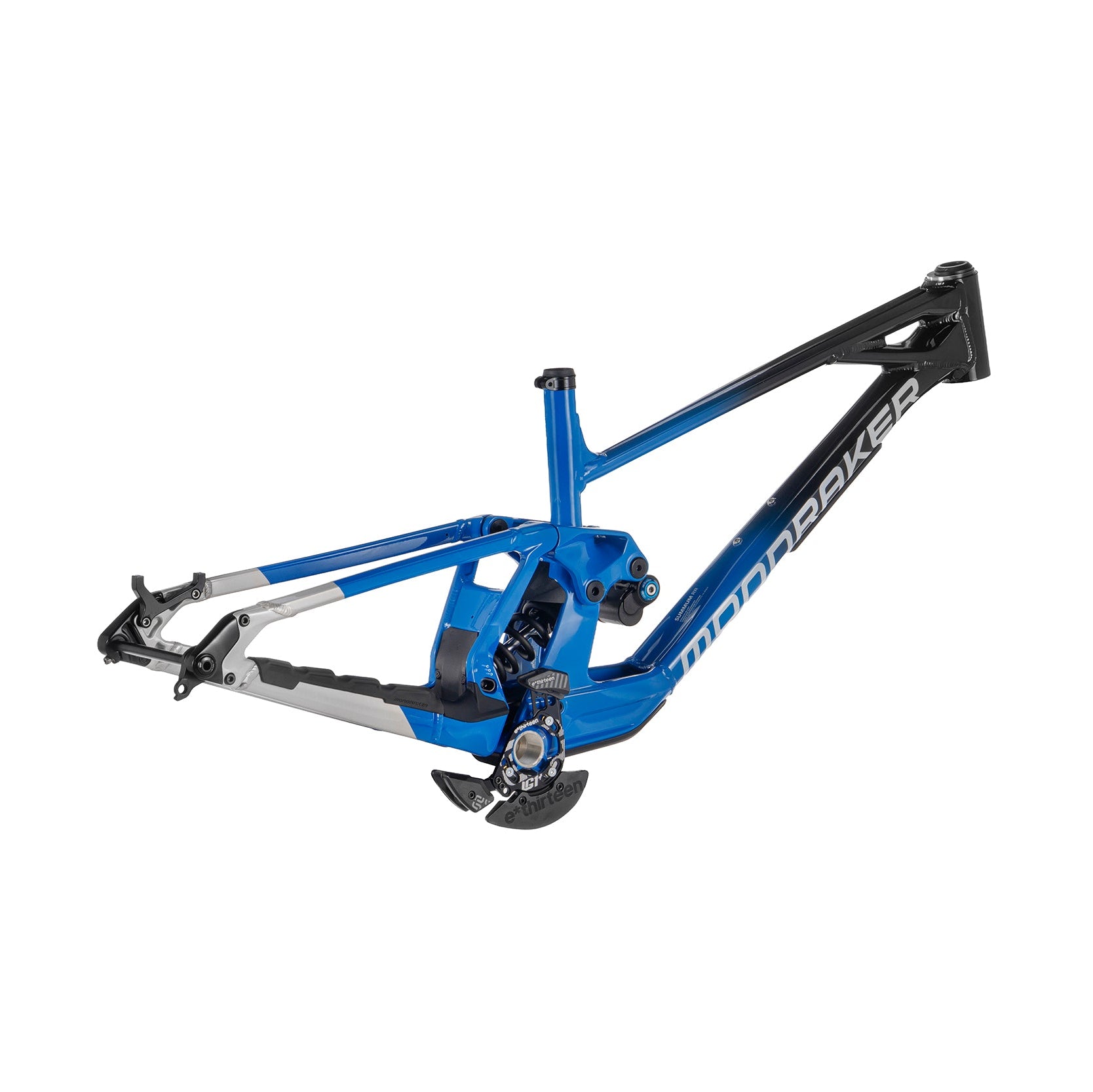

INTRODUCING THE NEW MONDRAKER SUMMUM

The Summum embodies our passion for technology, competition and Downhill racing. It is no coincidence that Mondraker's first ever product was a Downhill bike… and the Summum has become the most successful race bike at Mondraker and a true benchmark.

27 ADJUSTMENTS FOR THE PERFECT SET-UP

For those most skilled riders who prefer to further customize the geometry or adapt this new bike to certain courses or personal preferences you will find up to 27 possible configurations thanks to adjustable headset cups, a lower shock-mount flip chip, and adjustable rear dropouts.

Specifications

Frame

Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05.

Headset

Onoff DH ARS (Adjustable Reach System) 1-1/8", 1-1/8" steerer tube, 41x30x7 45ºx45º sealed bearings, reach geometry kit cups (+-5mm)
