Name: Mondraker KAOZ | Dirt Jump Bike
Brand: Mondraker
Price: 1999.0 GBP
Availability: OutOfStock

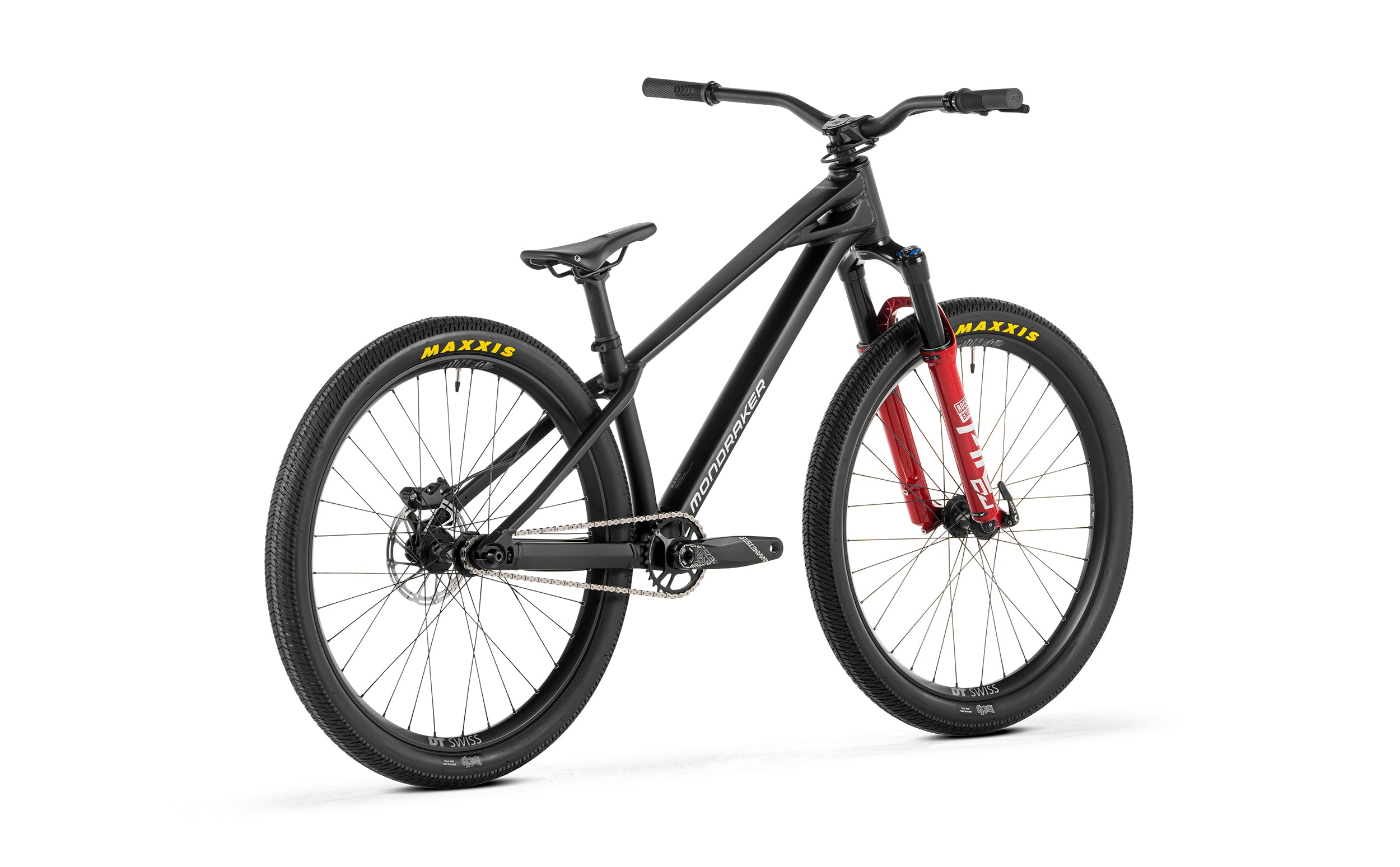

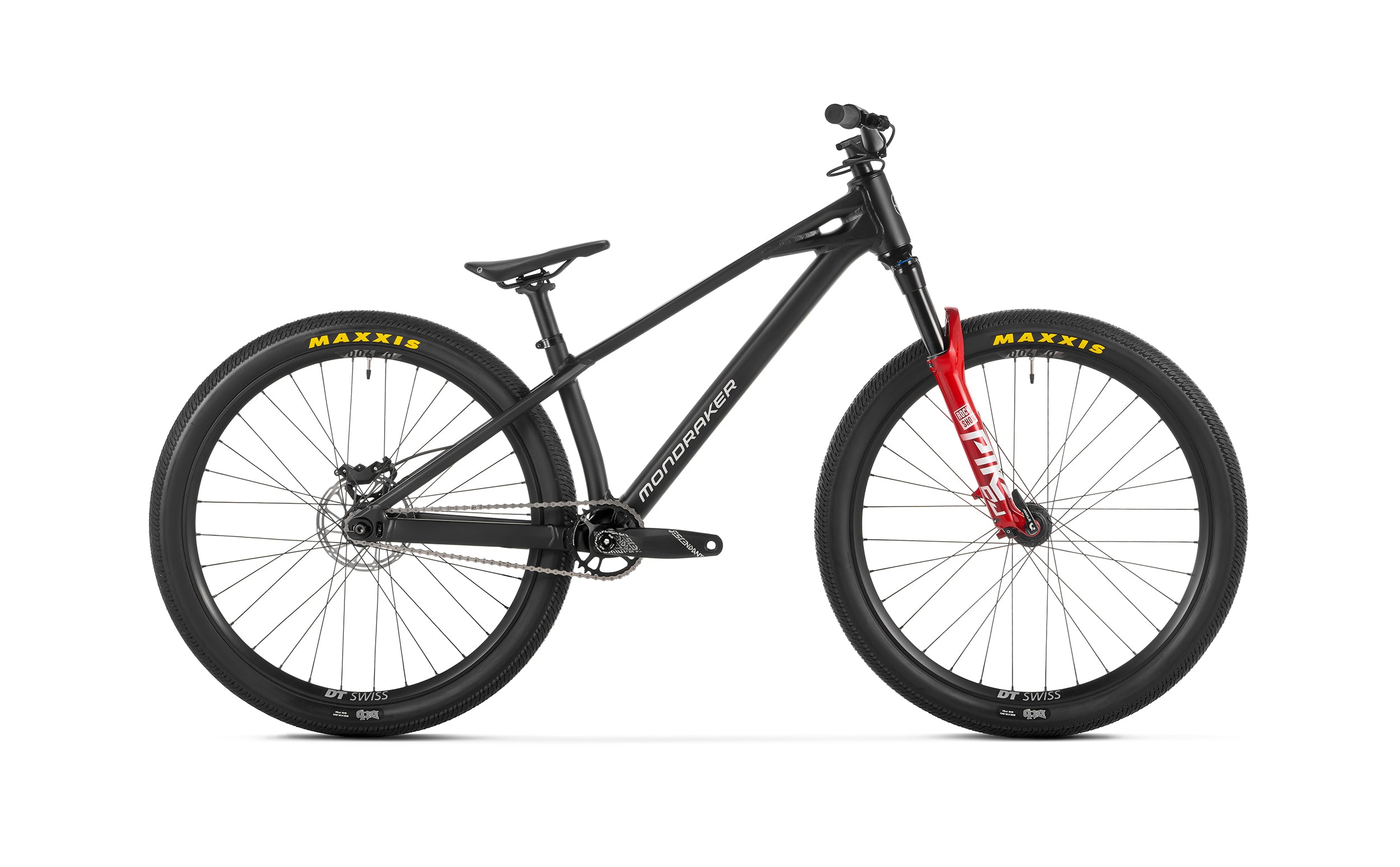

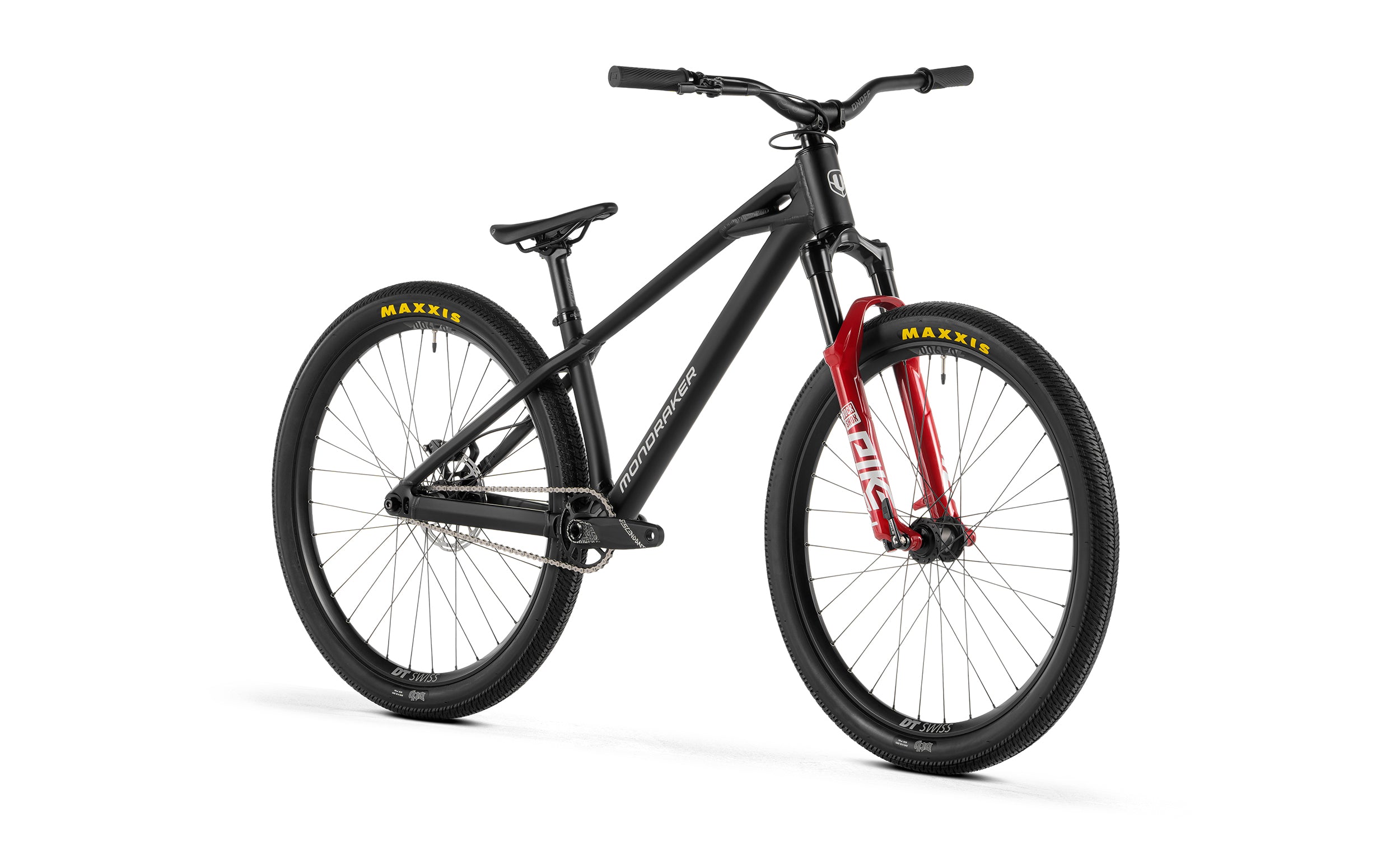

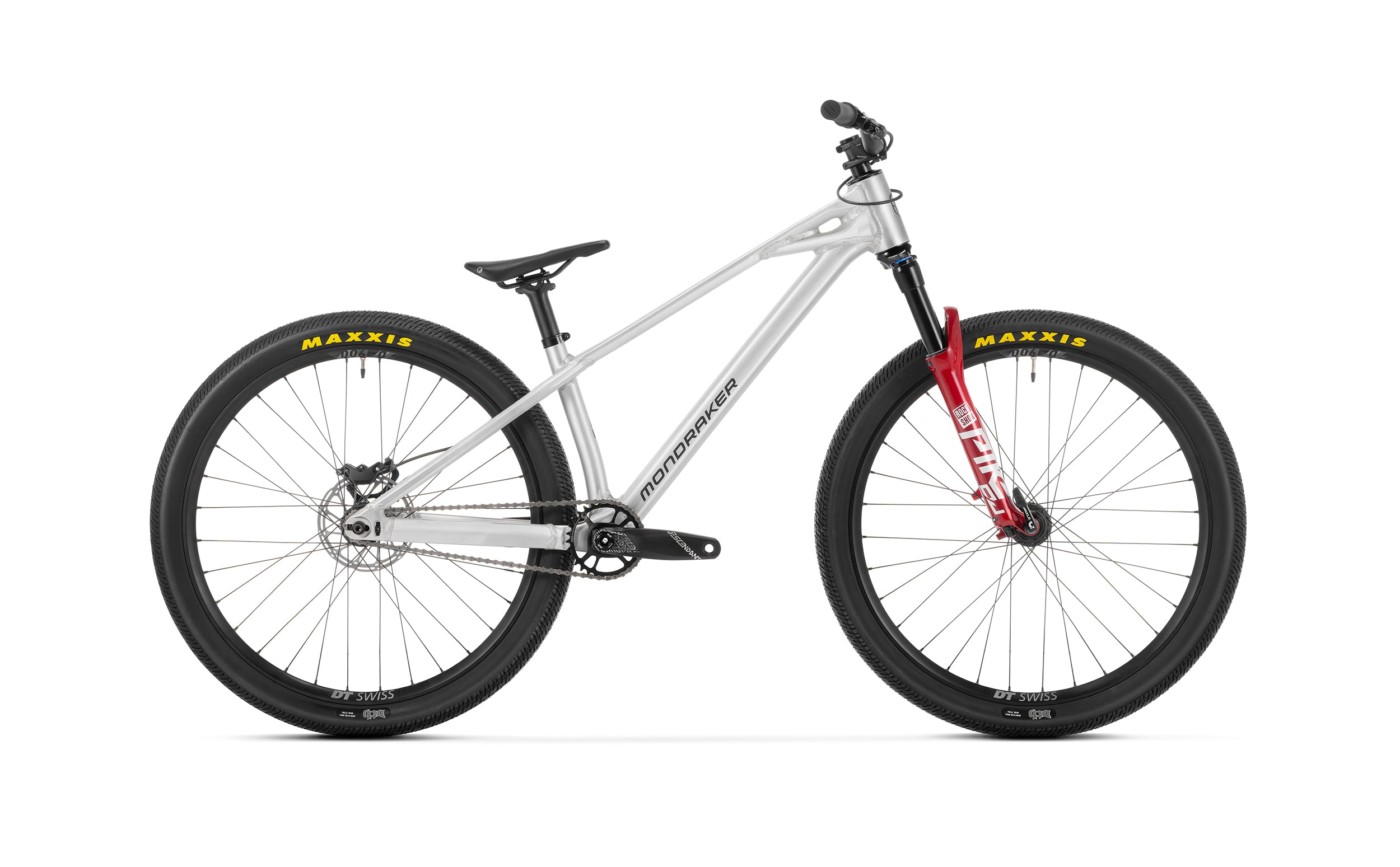

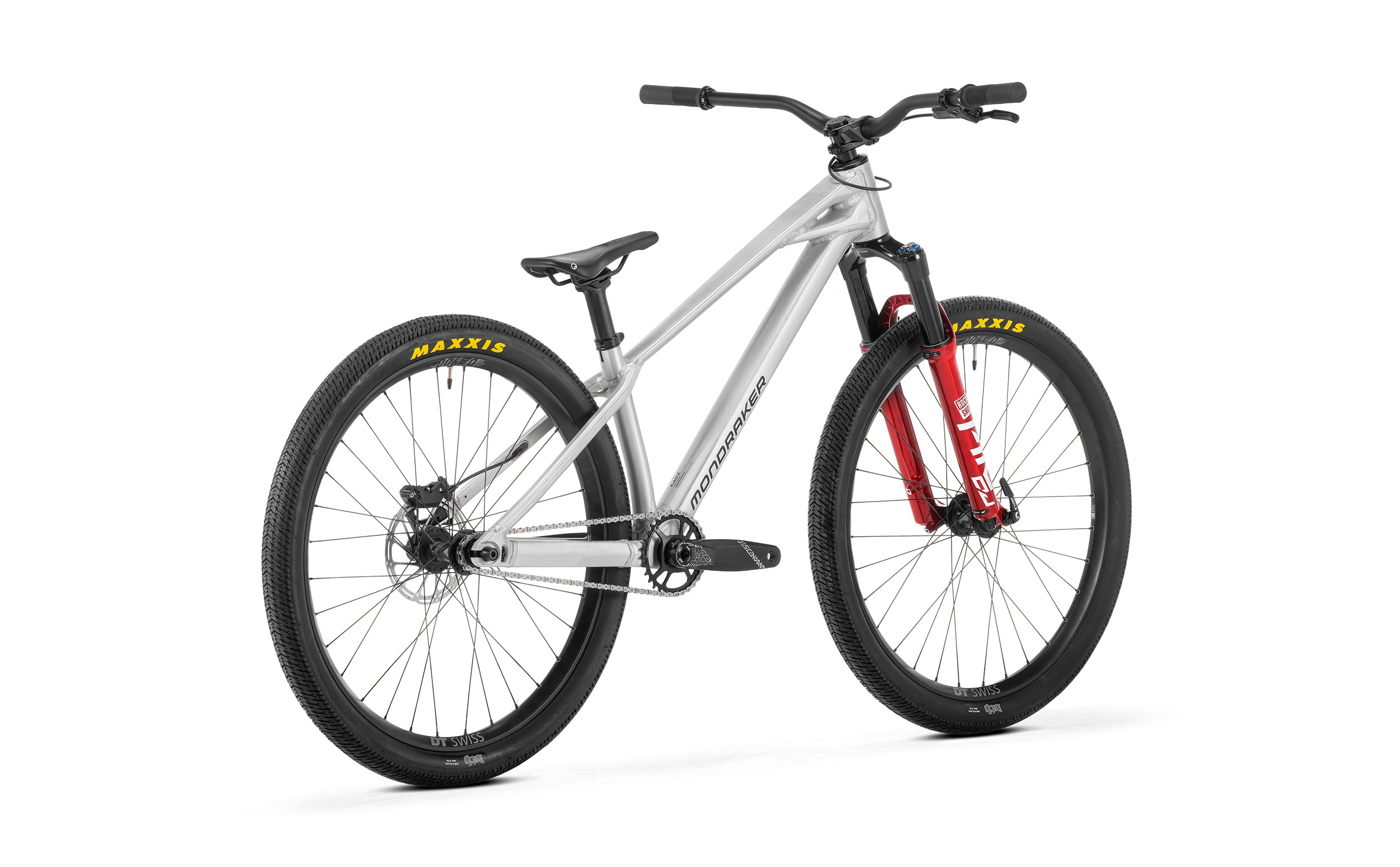

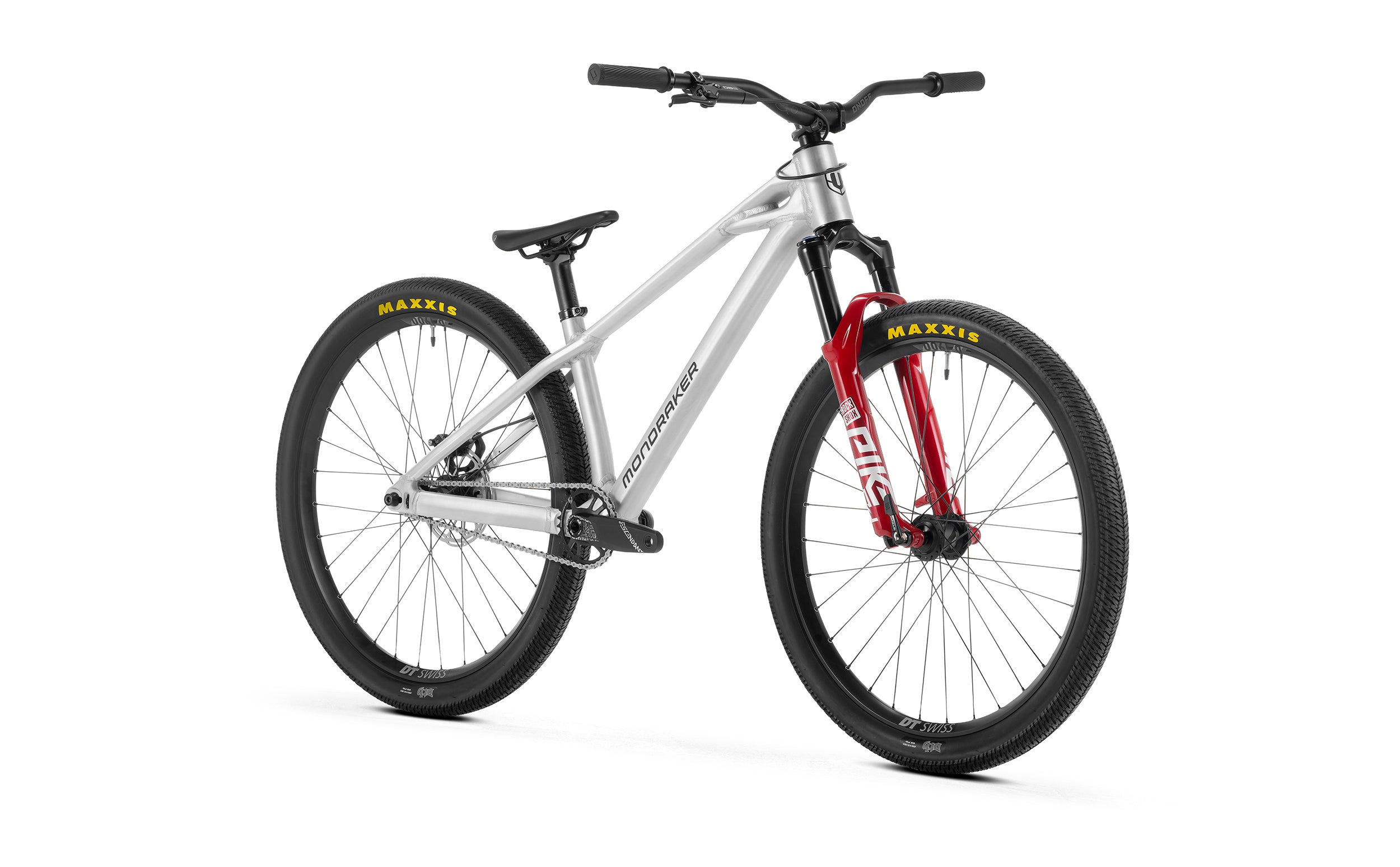

Mondraker KAOZ | Dirt Jump Bike

Mondraker

£ 1,999.00

Tax included.

Colour

Size

Pairs well with

Introducing the Mondraker KAOZ

The latest bike to join our gravity collection, alongside the proven Summum DH race bike, and new Anark park bike.

With instantly recognisable Mondraker aesthetics, the KAOZ is a frame for creative riding and has some unique features.

Whether that’s carving concrete bowls; pumping hard packed rollers or boosting off sculpted lips - KAOZ is the bike for expressing yourself.

STEALTH ALLOY EVO FRAME

With a design language that follows the Mondraker DNA, KAOZ is a dirt jump frame with precision engineering and special features.

From the headset back - every part of the frame has been considered.

The window behind the head tube is more than a design aesthetic - it’s a stiffness link that eliminates unwanted flexing. Steering is accurate and responsive, all the time.

Top quality bottom bracket

On frames designed around loading into compressions, stiffness at the bottom bracket area is everything. KAOZ has a ‘split-forged’ bottom bracket shell.

The most extreme forces converge here, so a unique two-piece forged bottom bracket shell allows for continuity of form towards the chainstays.

By eliminating abrupt welds and stress concentrators, KAOZ has exceptional lateral stiffness and superior fatigue resistance. Crucial for withstanding the hardest landings.

Tailwhip ready

Rear brake hose with added length, ready for barspins and tailwhips.

TECH FEATURES

CONSTRUCTION

- 6061 T6 aluminium

- Variable thickness hydroformed tubing

- Unique two-piece bottom bracket shell

CABLE ROUTING

- Silent Core internal cable routing

- Clean cable port at head tube

- Zero cable rattle for silent landings

SLIDING DROPOUTS

- Integrated tensioner and brake mount

- Simultaneous adjustment without the need to realign calliper.

- Oversized tensioner adjustment dial for easy regulation of chain tension

Specifications

Frame

Kaoz 6061-T6 Stealth Alloy Evo, hydroformed tubing, 26” Forward Geometry, BSA73, 10x135mm rear axle, Sliding Dropouts, Single Speed

Sizes

M: 415mm / L: 440mm

Fork

RockShox PIKE DJ, 26”, 100mm, Charger damper, tapered steerer tube, 15x100mm axle, 40mm offset

Headset

Onoff custom ZS56/ZS56, 1-1/8”, 1.2” head tube

Stem

Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff S6 1.5 7050 alloy, rise: 38mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore

Grips

Onoff Desert Pro, CNC lock-on, 135mm, thin

Seatpost

Onoff S3 DH alloy, diameter 31.6mm, length 300mm

Saddle

Ergon SM10 DH Black

Rear brake

Sram DB8, 4-piston caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram DB8, tool reach adjust, lever pivot bushings

Rims

DT Swiss D 1900 Classic, 30mm internal width, aluminum pinned rim joint, tubeless ready, 32 spokes

Spokes

DT J-bend spokes, DT competition®, black

Front hub

DT Swiss 370, 15x100mm, IS 6 bolts

Rear hub

DT Swiss 370 Classichub with 36T Ratchet LN, Singlespeed with sprocket 12T, 10x135mm bolts-on, IS 6 bolts

Front tire

Maxxis DTH 26x2.3, single compound, 60TPI, Tubeless ready, Foldable

Rear tire

Maxxis DTH 26x2.3, single compound, 60TPI, Tubeless ready, Foldable

Crankset

Sram Truvativ Descendant 6K, DUB axle, Direct mount chain ring, 165mm CL 49mm

Rings

Sram Eagle 30T, steel, X-Sync 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram PC-1, Singlespeed, PowerLock 1s

Weight

11,2 kg (Size M)
