The latest bike to join our gravity collection, alongside the proven Summum DH race bike, and new Anark park bike.

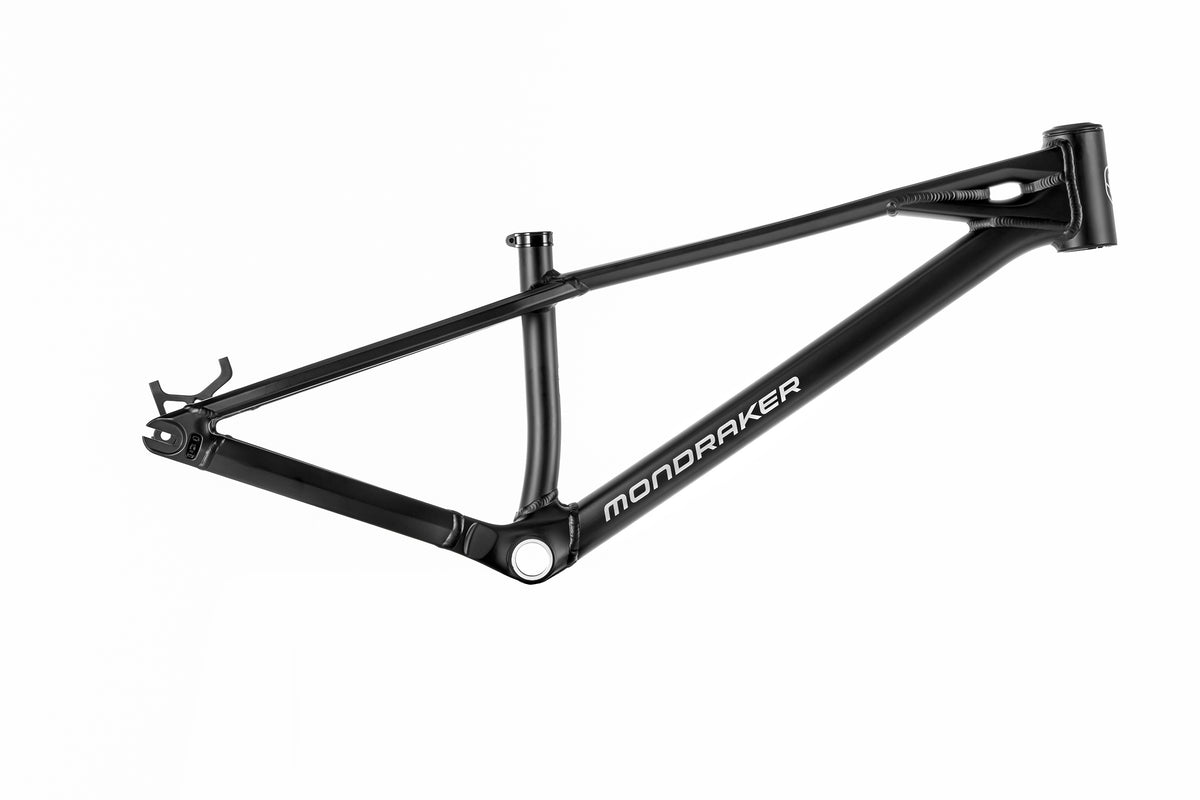

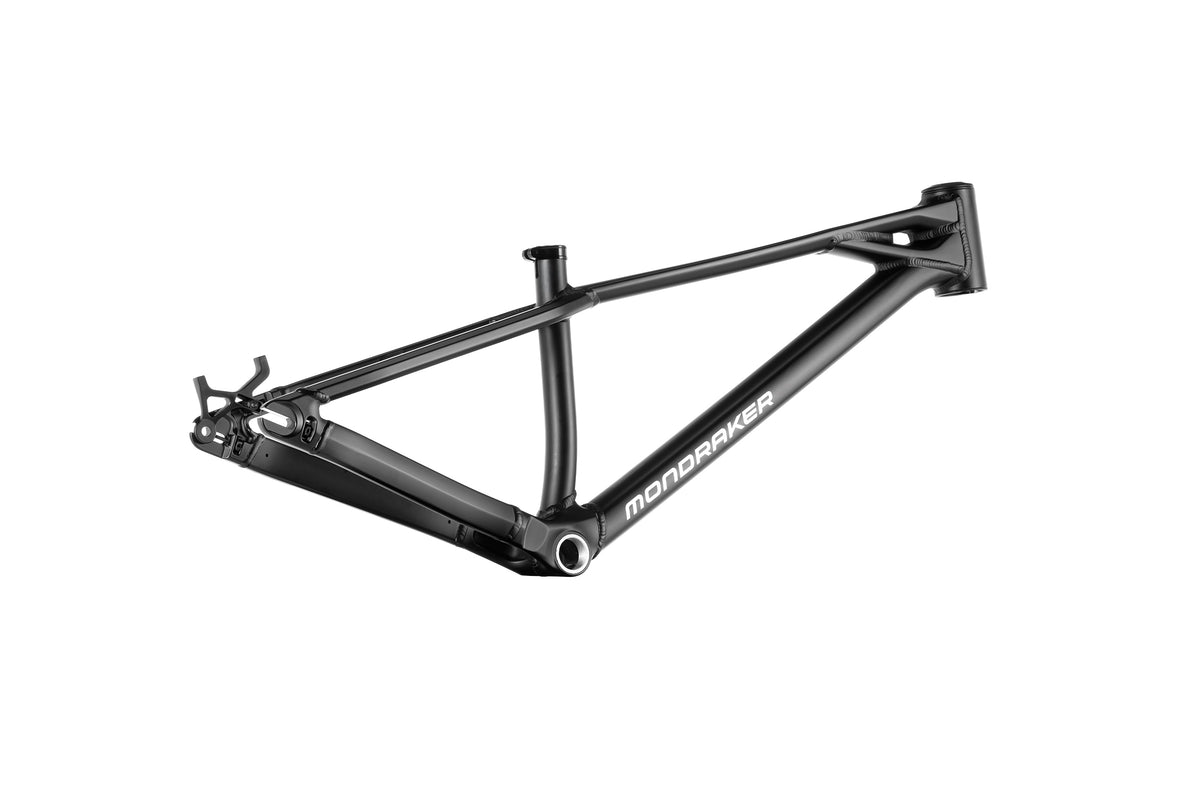

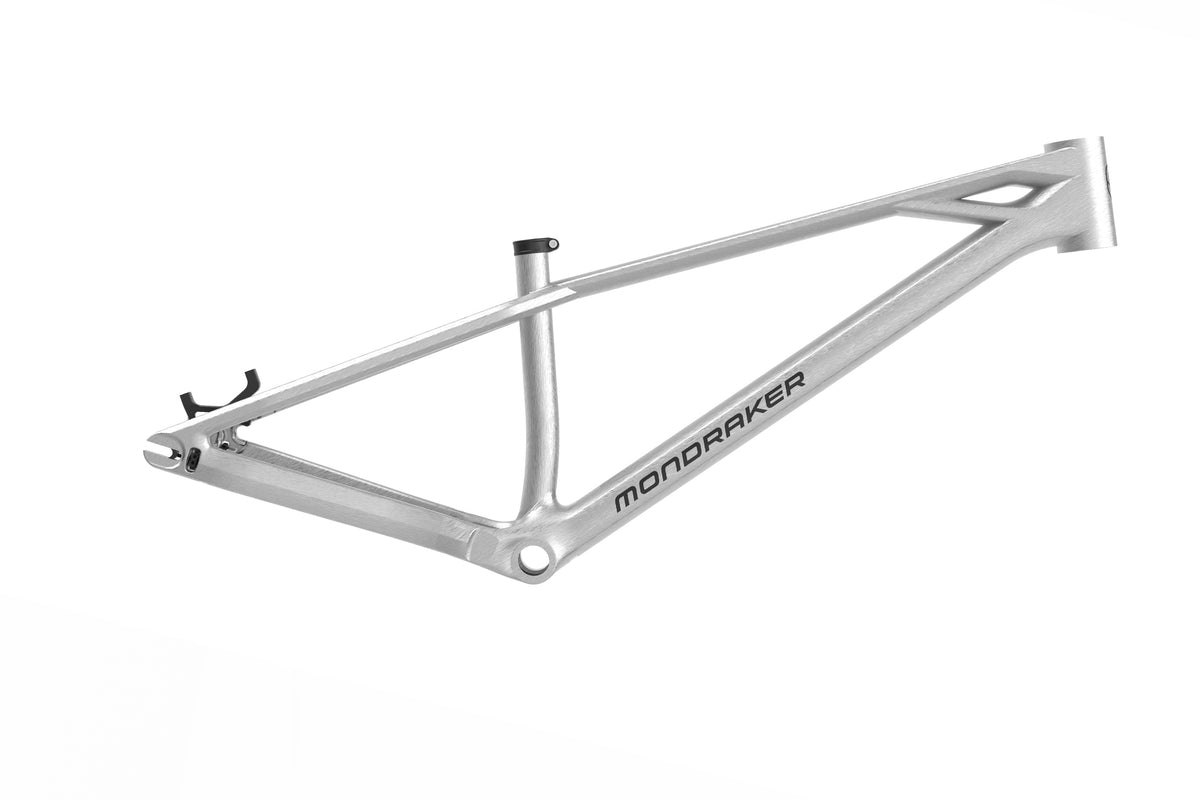

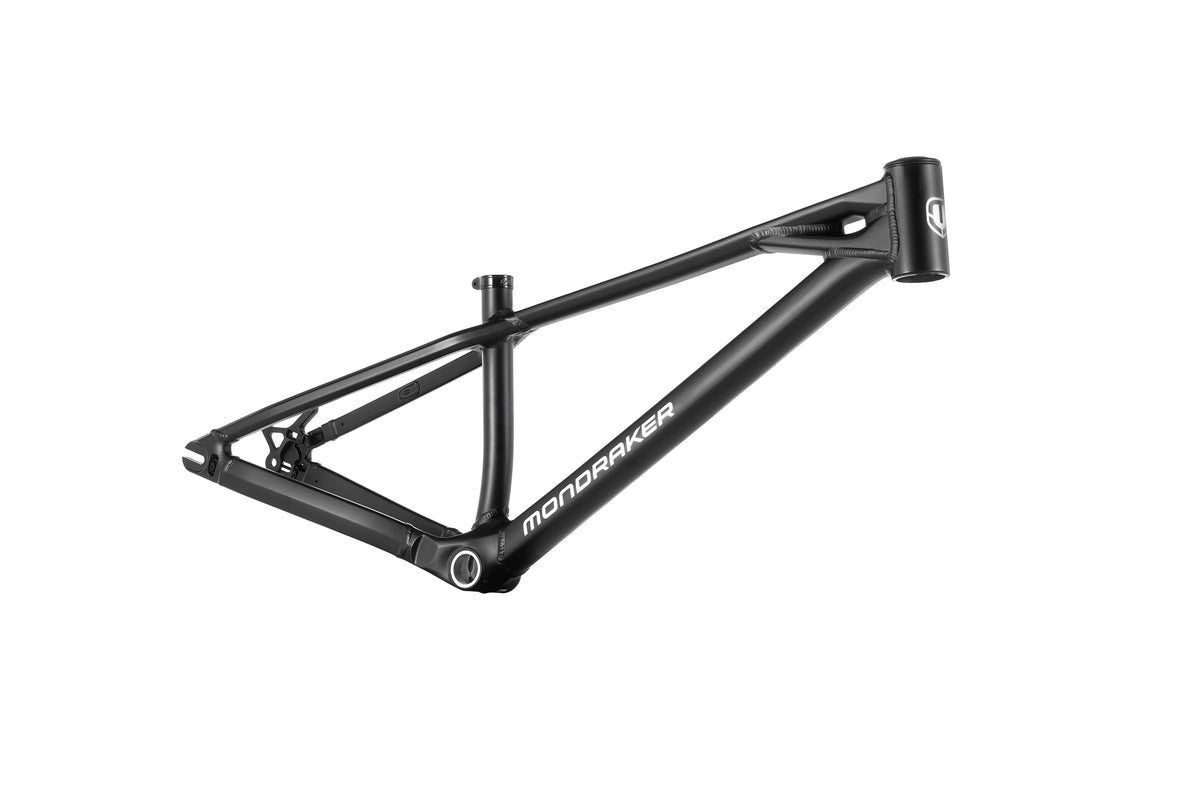

With a design language that follows the Mondraker DNA, KAOZ is a dirt jump frame with precision engineering and special features.
From the headset back - every part of the frame has been considered.
The window behind the head tube is more than a design aesthetic - it’s a stiffness link that eliminates unwanted flexing. Steering is accurate and responsive, all the time.
Top quality bottom bracket
On frames designed around loading into compressions, stiffness at the bottom bracket area is everything. KAOZ has a ‘split-forged’ bottom bracket shell.
The most extreme forces converge here, so a unique two-piece forged bottom bracket shell allows for continuity of form towards the chainstays.
By eliminating abrupt welds and stress concentrators, KAOZ has exceptional lateral stiffness and superior fatigue resistance. Crucial for withstanding the hardest landings.
Adjustable sliding dropouts
Completing the KAOZ frame are sliding dropouts with integrated brake mount for perfect simultaneous chain tension and brake calliper alignment, maintaining perfect braking geometry without the need for readjustment.
TECH FEATURES
CONSTRUCTION
- 6061 T6 aluminium
- Variable thickness hydroformed tubing
- Unique two-piece bottom bracket shell
CABLE ROUTING
- Silent Core internal cable routing
- Clean cable port at head tube
- Zero cable rattle for silent landings
SLIDING DROPOUTS
- Integrated tensioner and brake mount
- Simultaneous adjustment without the need to realign calliper.
- Oversized tensioner adjustment dial for easy regulation of chain tension
