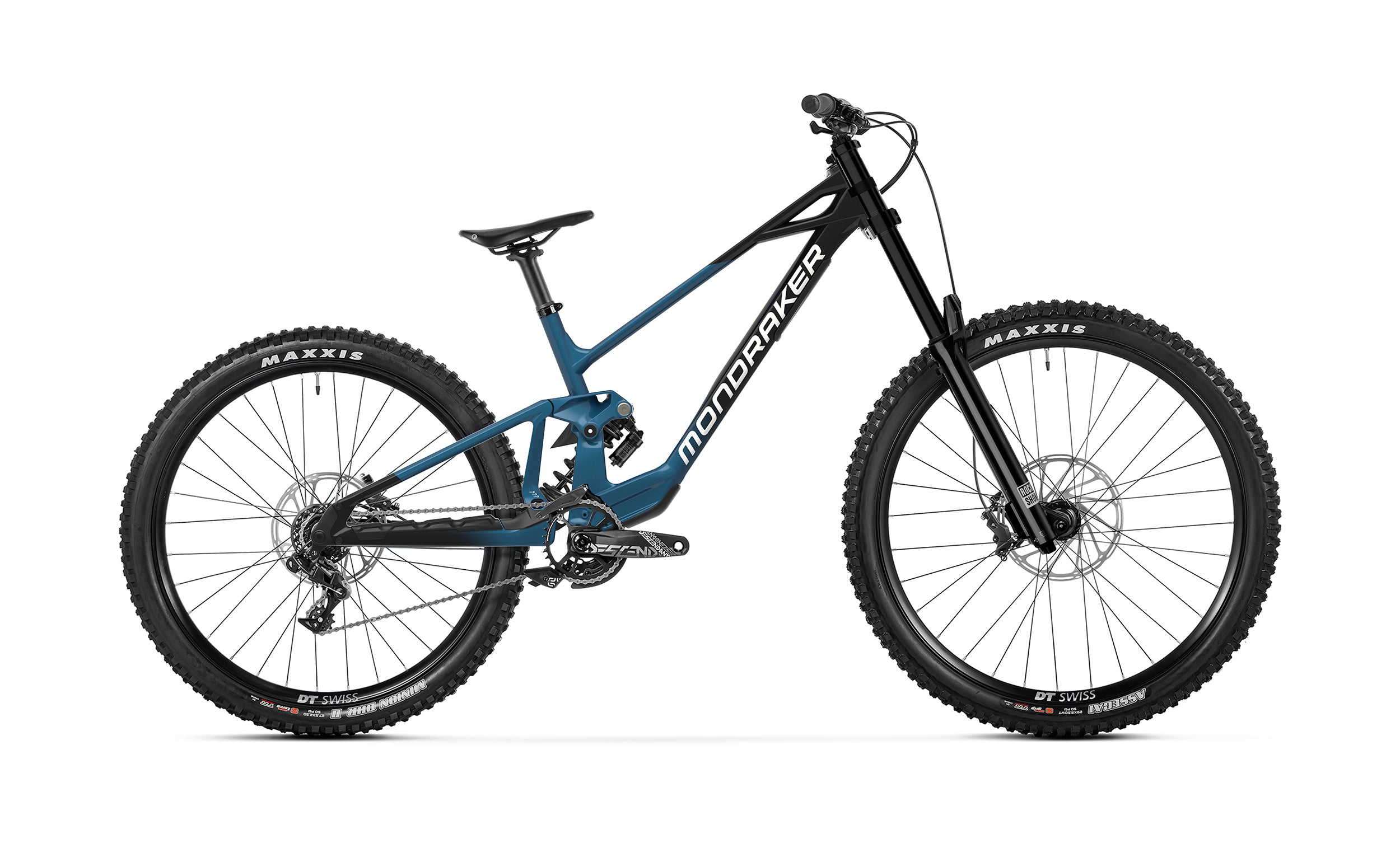

Mondraker Summum R Mullet Quasar Blue
Mondraker Summum R Mullet Quasar Blue

Mondraker Summum R Mullet Quasar Blue

Mondraker
£ 4,999.00
Tax included.

Pairs well with

SUMMUM: WRITTEN IN HISTORY

An all-new Summum that’s taken the longest to develop, evolved and improved in all areas. A machine that’s been race crafted over the past two years.



Your best new tool for the job in Downhill Racing.

Developed under the cutting-edge and most advanced expertise this new Summum has been forged on the toughest World Cup race tracks across the globe with sweat, adrenaline and victories of our Mondraker Factory DH racing team racers.



27 ADJUSTMENTS FOR THE PERFECT SET-UP

For those most skilled riders who prefer to further customize the geometry or adapt this new bike to certain courses or personal preferences you will find up to 27 possible configurations thanks to adjustable headset cups, a lower shock-mount flip chip, and adjustable rear dropouts.

Specifications

Frame

Summum MX 6061 Stealth Alloy Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX. capacity dual row bearings, HHG internal cable routing, ISCG 05.


Sizes

M / L / XL


Rear shock

RockShox Vivid Coil Select+, 225x75mm, spring preload. Trunnion top mount, 30x8mm bottom bushings


Shock settings

R55, C40. Spring rate: M size 450 lbs, L size 500 lbs, XL size 550 lbs


Fork

Rockshox Boxxer Select RC 29, 200mm, DebonAir+, 1-1/8” steerer tube, Boost 20x110mm axle, offset 52mm. Settings: low-speed compression, rebound, air preload


Headset

Onoff DH ARS (Adjustable Reach System) 1-1/8", 1-1/8" steerer tube, 42x30x7x45ºx45º sealed bearings, reach kit cups( +-5 mm)


Stem

Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 4x5mm spacer


Handlebar

Onoff S6 1.5 7050 alloy, rise: 35 mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore.


Grips

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size


Seatpost

Onoff S3 DH Alloy, diameter 31.6mm, length 300mm


Saddle

Ergon SM10 DH Black


Front brake

Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed organic pads


Rear brake

Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads


Brake lever

Sram Maven Base , Directlink and lever pivot bushings, tools-free reach adjust


Rims

DT Swiss F 1900 Classic, 30mm internal width, welded aluminum, tubeless ready, 28 spokes front, 32 spokes rear


Spokes

DT J-bend spokes, DT competition®, black


Front hub

DT Swiss 370, Boost 20x110mm, IS 6 bolts


Rear hub

DT Swiss 370 Classic with 18T Ratchet LN System, 12x157mm, IS 6 bolts, HG freehub


Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead


Rear tire

Maxxis Minion DHR II 27''5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH casing, 60x2TPI, folding bead


Crankset

Sram Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56´5


Rings

36T, aluminum, X-SYNC


Bottom bracket

Sram DUB BSA, sealed bearings, 83mm


Chain

Sram PC1110 11s, Powerlock


Front derrailleur

E.13 LG1+ Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 36-38T, ISCG 05 adjustable upper slider


Rear derrailleur

Sram GX DH, 7s, medium cage


Shift levers

Sram trigger GX DH 7s, X-actuation 1:1


Casette

Sram PG 720 11-25T, 7s


Derailleur hanger

Sram UDH


Others

*Geometry kit included: +- 5mm headset cups, Lower shock mount flip chip, +5mm dropout, -5mm dropout
