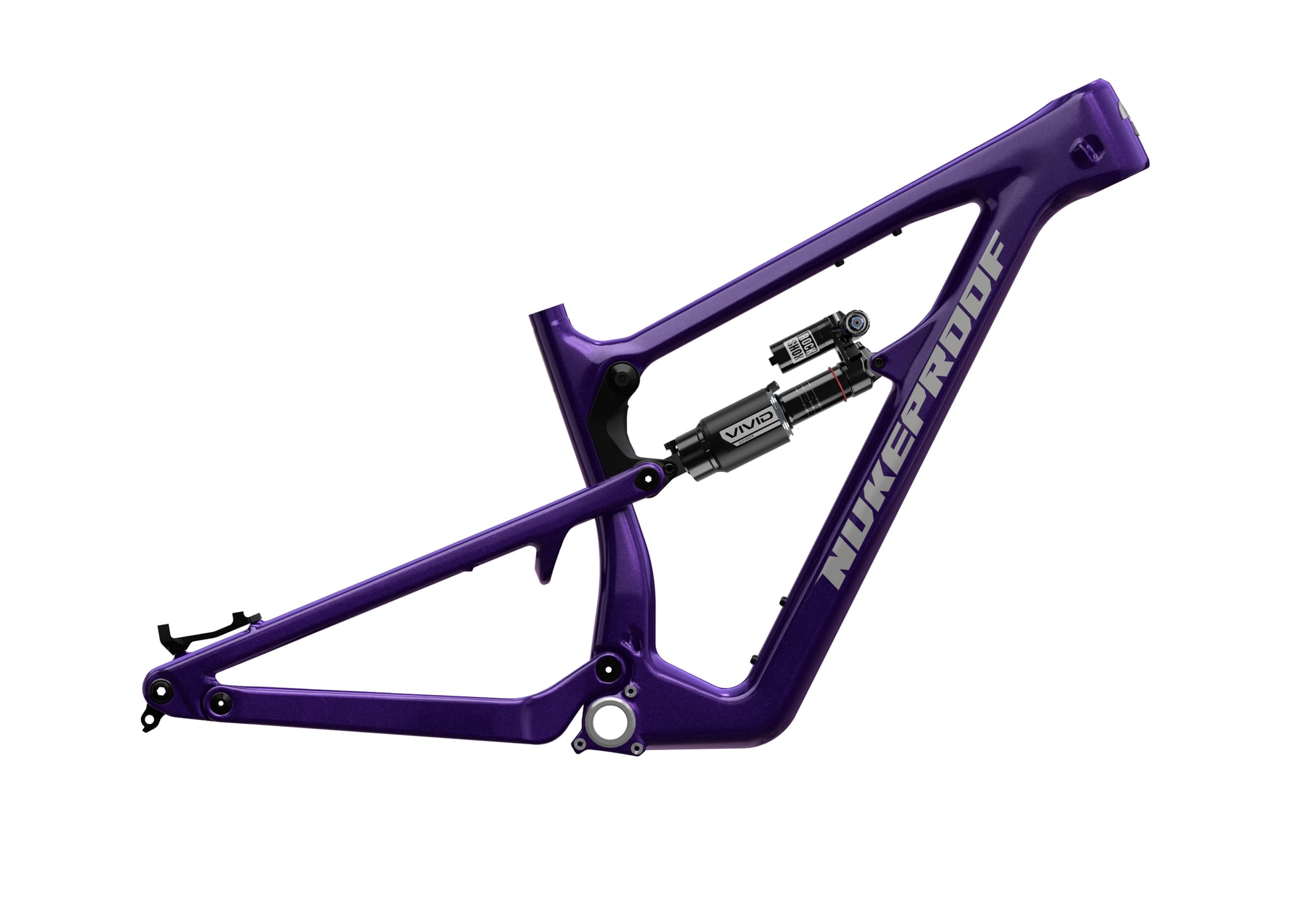

Nukeproof Mega Carbon 297 / 290 Frame
Nukeproof Mega Carbon 297 / 290 Frame

Nukeproof Mega Carbon 297 / 290 Frame

Nukeproof
£ 2,499.00
Tax included.

Pairs well with

The Nukeproof Mega is an enduro bike built on the tenets of balance, predictability, and absolute speed. Originally conceived as the downhiller’s trail bike, it was purpose-built to conquer the legendary MEGAVALANCHE race in France and spawned a new category of bike that would be known as Enduro forever more.



Over the past decade, the Mega has earned its reputation as a race-winning machine — with multiple Enduro World Series stage wins and four overall EWS titles to its name. It’s the evolution of relentless development and refinement, shaped by the feedback of world-class racers and dedicated riders alike.



Now in its fourth generation, every detail of the Mega has been optimised for speed, control, and efficiency — built to go flat-out, wherever the trail leads.

Specifications

Frame

Mega

Rear Shock

RockShox Vivid Ultimate 230x62,5 R25 C30 X4 2tok

Geometry
SMALL-297 MEDIUM-297 LARGE-297 X-LARGE-290 XX-LARGE-290







A Reach 430 455 475 495 515
B Stack 621.16 621.16 639.22 648.24 657.27
C Effective top tube 567.7 592.71 610.87 632.79 654.71
D Seattube length 380 410 440 470 500
E Effective seattube angle 77.5° 77.5° 78° 78° 78°
F Actual seattube angle 71° 71° 71.5° 71.5° 71.5°
G Saddle height for saddle offset 650 700 750 800 850
H Saddle offset at saddle height 142.22 158.59 166.66 181.58 196.49
I Headtube length 100 100 120 130 140
J Headtube angle 64° 64° 64° 64° 64°
K Chainstay length 435 435 435 440 440
L Front centre 758.5 783.5 812.11 836.42 860.72
M Wheelbase 1192.5 1217.5 1246.1 1275.39 1299.7
N Bottom bracket drop 30 / 10 30 / 10 30 / 10 30 30
O Bottom bracket height 345 345 345 345 345
P Stand over height 725.16 724.41 722.92 730.78 736.07
Q Fork travel 170 170 170 170 170
R Trail 132.33 132.33 132.33 132.33 132.33
S Fork offset 42 42 42 42 42
T Axl te crown 582 582 582 582 582
U Maximum seatpost insert 250 250 255 275 294
