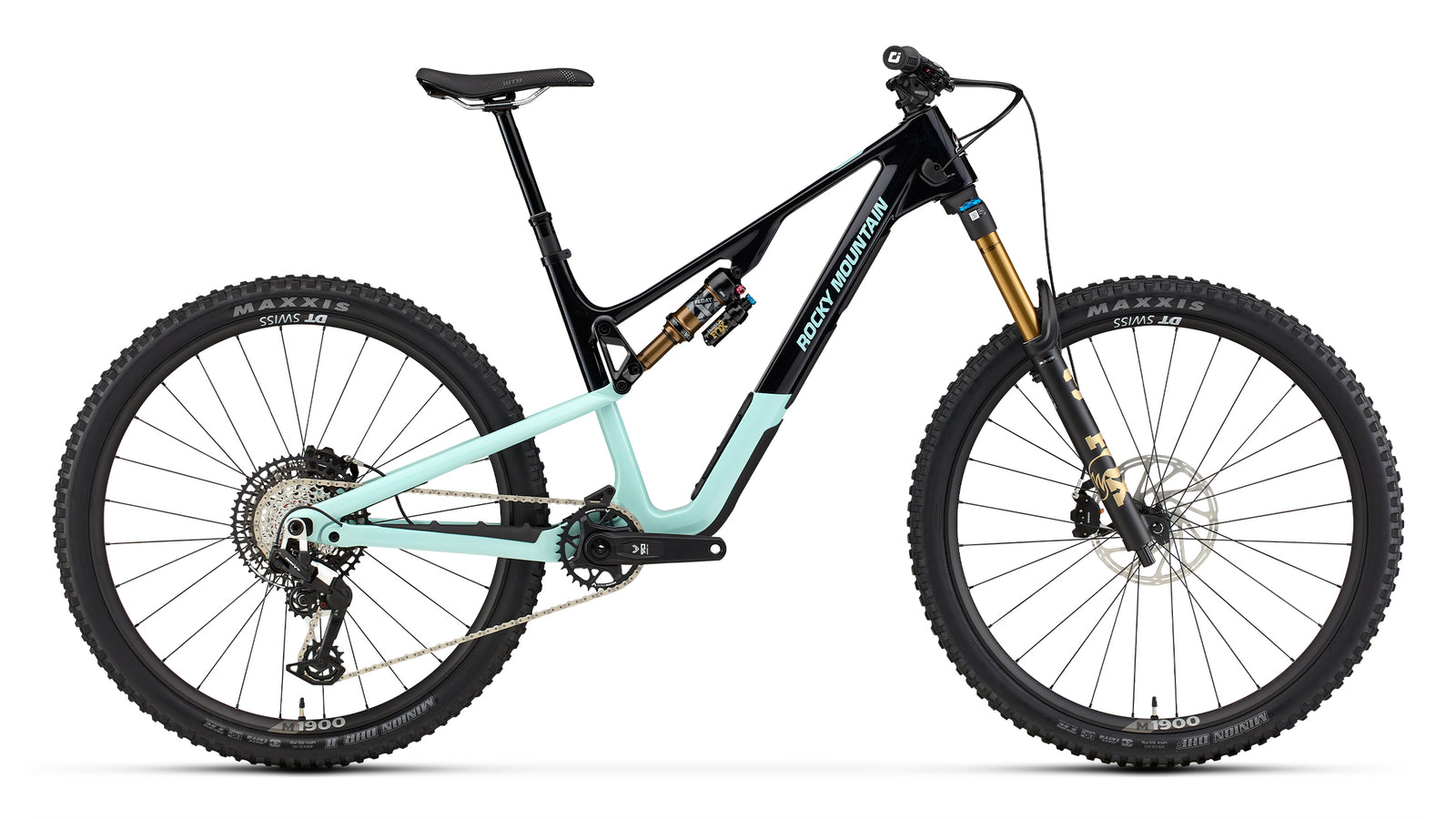

Rocky Mountain Instinct Carbon 70
Rocky Mountain Instinct Carbon 70 Fork
Rocky Mountain Instinct Carbon 70 Front
Rocky Mountain Instinct Carbon 70 Shock
Rocky Mountain Instinct Carbon 70 Details
Rocky Mountain Instinct Carbon 70
Rocky Mountain Instinct Carbon 70 Fork
Rocky Mountain Instinct Carbon 70 Front
Rocky Mountain Instinct Carbon 70 Shock
Rocky Mountain Instinct Carbon 70 Details
Rocky Mountain Instinct Carbon 70
Rocky Mountain Instinct Carbon 70 Fork
Rocky Mountain Instinct Carbon 70 Front
Rocky Mountain Instinct Carbon 70 Shock
Rocky Mountain Instinct Carbon 70 Details

Rocky Mountain Instinct Carbon 70

Rocky Mountain
£ 4,100.00
£ 6,999.99
Tax included.

Pairs well with

Rocky Mountain Instinct Carbon 70 - ARD ROCK SPECIAL OFFER

Features and technologies

SMOOTHWALL™ Carbon

Smoothwall carbon uses one of the world’s most sophisticated carbon processes to deliver industry leading stiffness-to-weight, ride quality, and durability.

RIDE-4™ adjustment system

The RIDE-4 adjustment system allows riders to quickly fine-tune their geometry with a single Allen key. Four configurations are possible thanks to one rotating chip.

Two-position axle

The two-position axle allows the rider to choose a short or long rear-center length that suits their personal preferences.

Size Specific Tune

Size Specific Tune ensures that riders of all sizes get the right balance of small-bump compliance, mid-stroke support, and end-stroke progressiveness. Our design team does custom shock tunes based on real world field testing, and adjusts each tune for specific frame sizes.

Smoothlink™ suspension

Smoothlink suspension is efficient yet supple when you’re on the pedals and across a wide range of gears. It features a controlled end-stroke and a rate-curve that feels more capable than the travel would suggest.

Adjustable headset cups

The Reaper Powerplay features adjustable headset cups to preserve a balanced geometry while swapping wheel size.

Specifications

Frame - SMOOTHWALL™ Carbon | Penalty Box 2.0 Storage | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | SM - XL = 145mm | XS = 140mm | SMOOTHWALL™ Carbon Rear Triangle

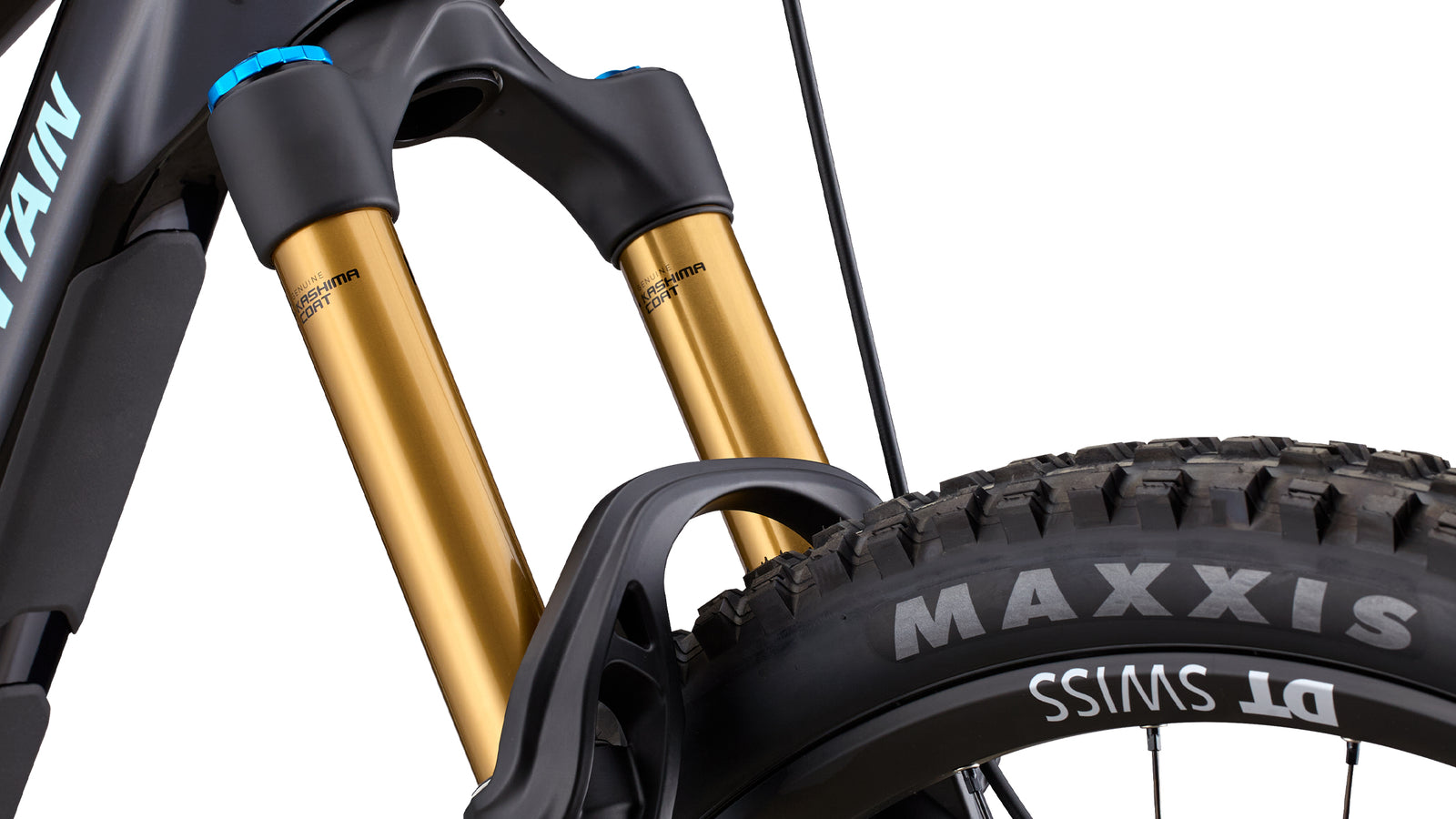

Fork - Fox 36 Float EVOL GRIP X Factory Series 160mm | 44mm Offset


Front Travel - 160

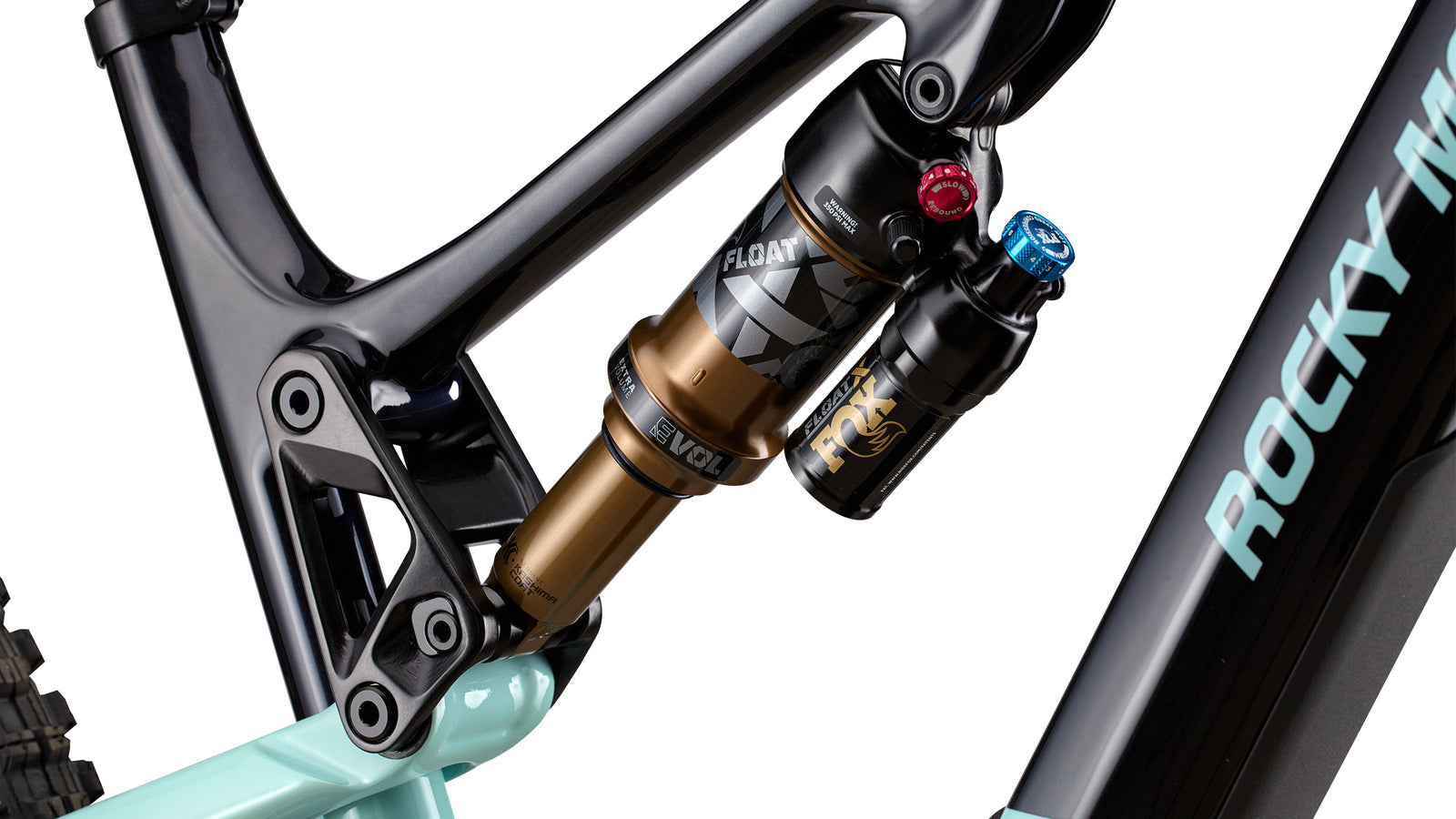

Shock - Fox Float X Factory | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x55mm | MD - LG - XL = 210x55mm | Size-Specific tune in


Rear Travel - 145


Headset - FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race


Stem - Rocky Mountain 35 AM | 0° Rise | All Sizes = 40mm

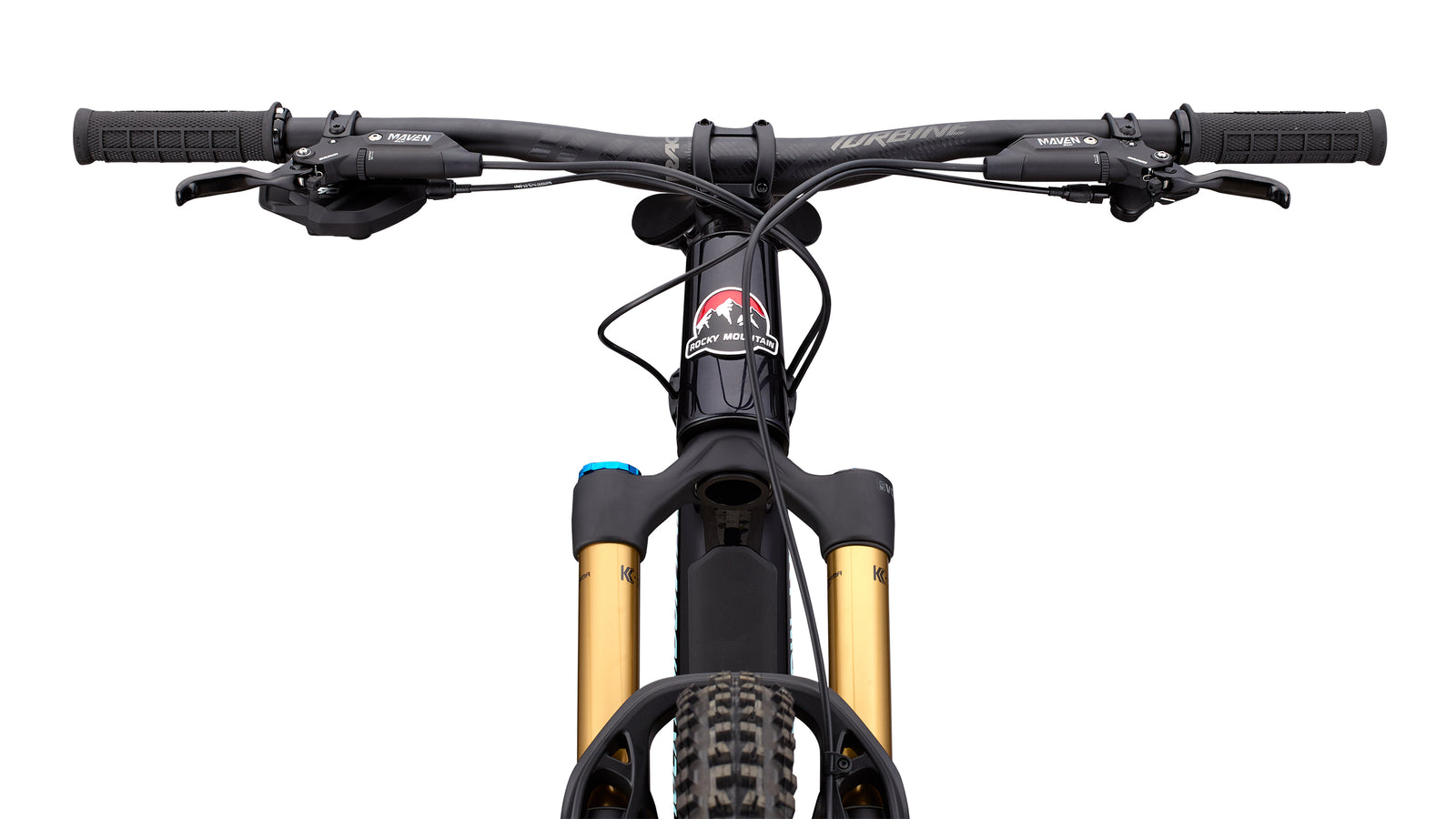

Handlebar - Race Face Turbine | XS = 760mm | SM - XL = 780mm Width | 20mm Rise | 8° Backsweep | 5° Upsweep | 35mm Clamp


Grips - ODI Elite Pro Lock On

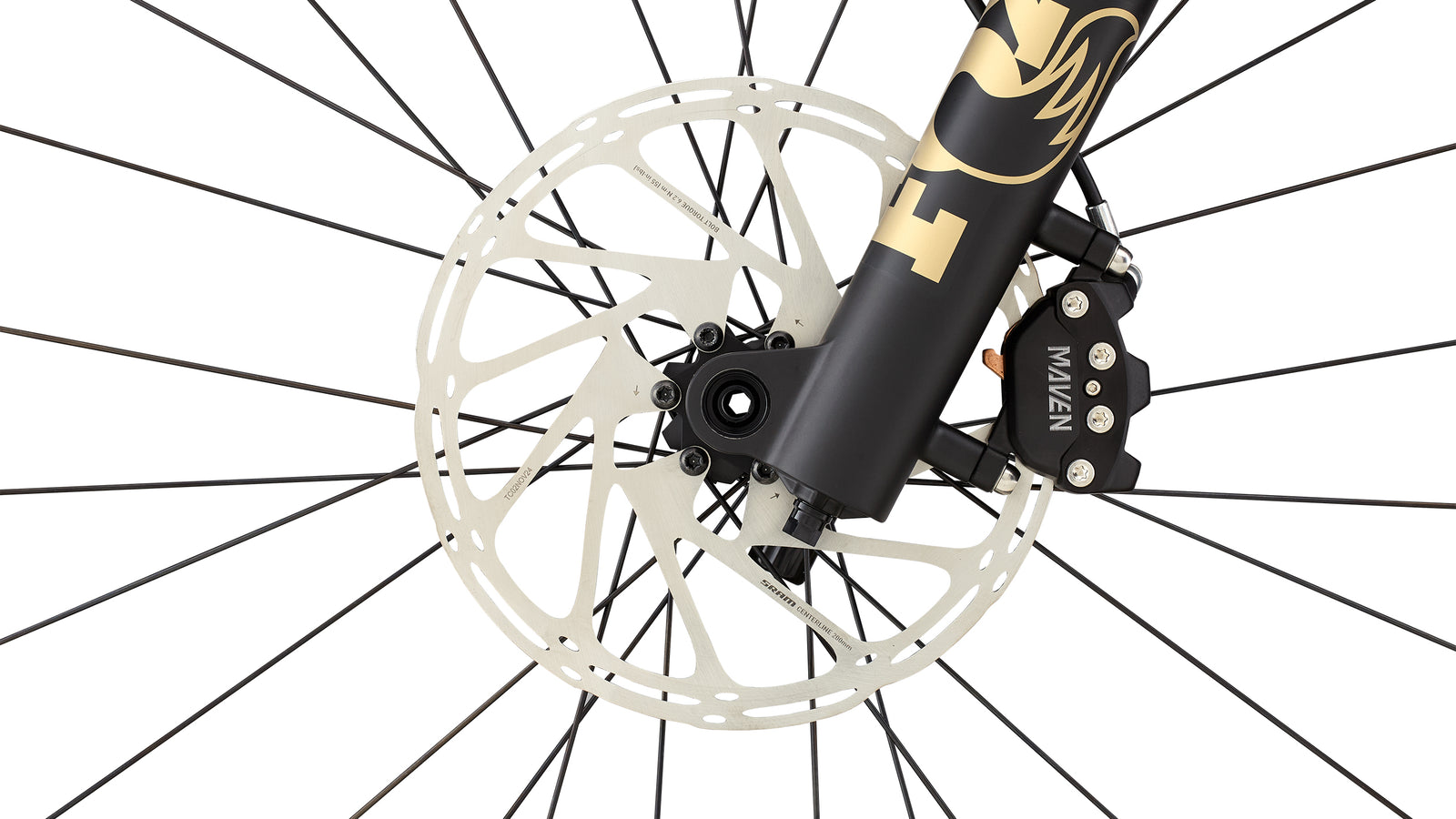

Brakes - Sram Maven Silver Stealth 4 Piston | Metal Pads


Shifters - Sram Eagle 90 Transmission


Rear Derailleur - Sram Eagle 90 Transmission


Cranks & Chainring - Sram Eagle 90 | 32T | DUB Spindle | Crankarm Length: XS -SM = 165mm | MD - XL = 170mm


Bottom Bracket - Sram BB92 DUB Wide


Cassette - Sram GX Eagle Transmission 10-52T


Chain - Sram GX Eagle Transmission


Tyres - F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready | R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready


Seatpost - OneUp V3 Dropper 30.9mm | XS = 120 | SM = 150mm | MD = 180mm | LG = 210mm | XL = 240mm


Saddle - WTB Volt Fusion Form 142 | Cromoly Rails
