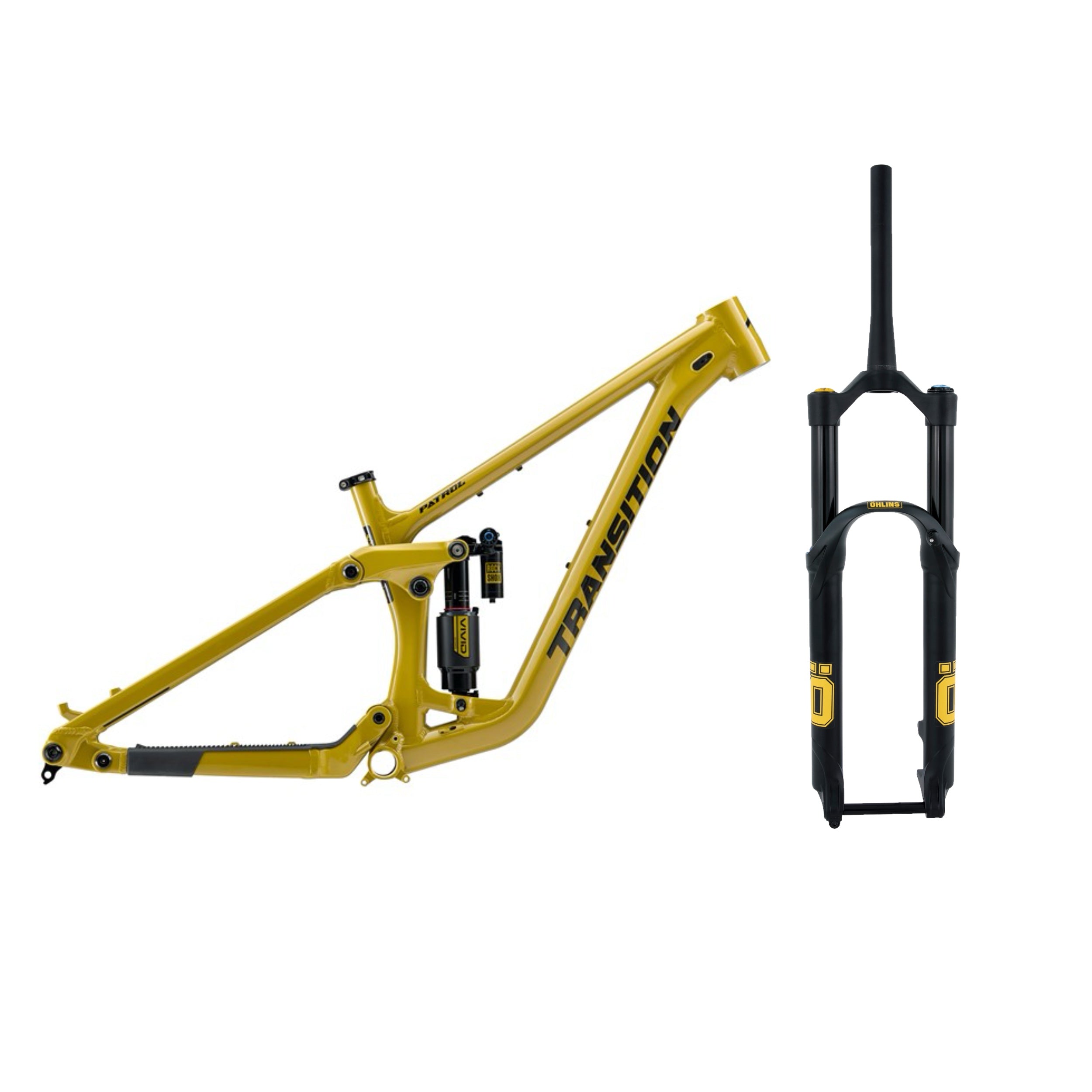

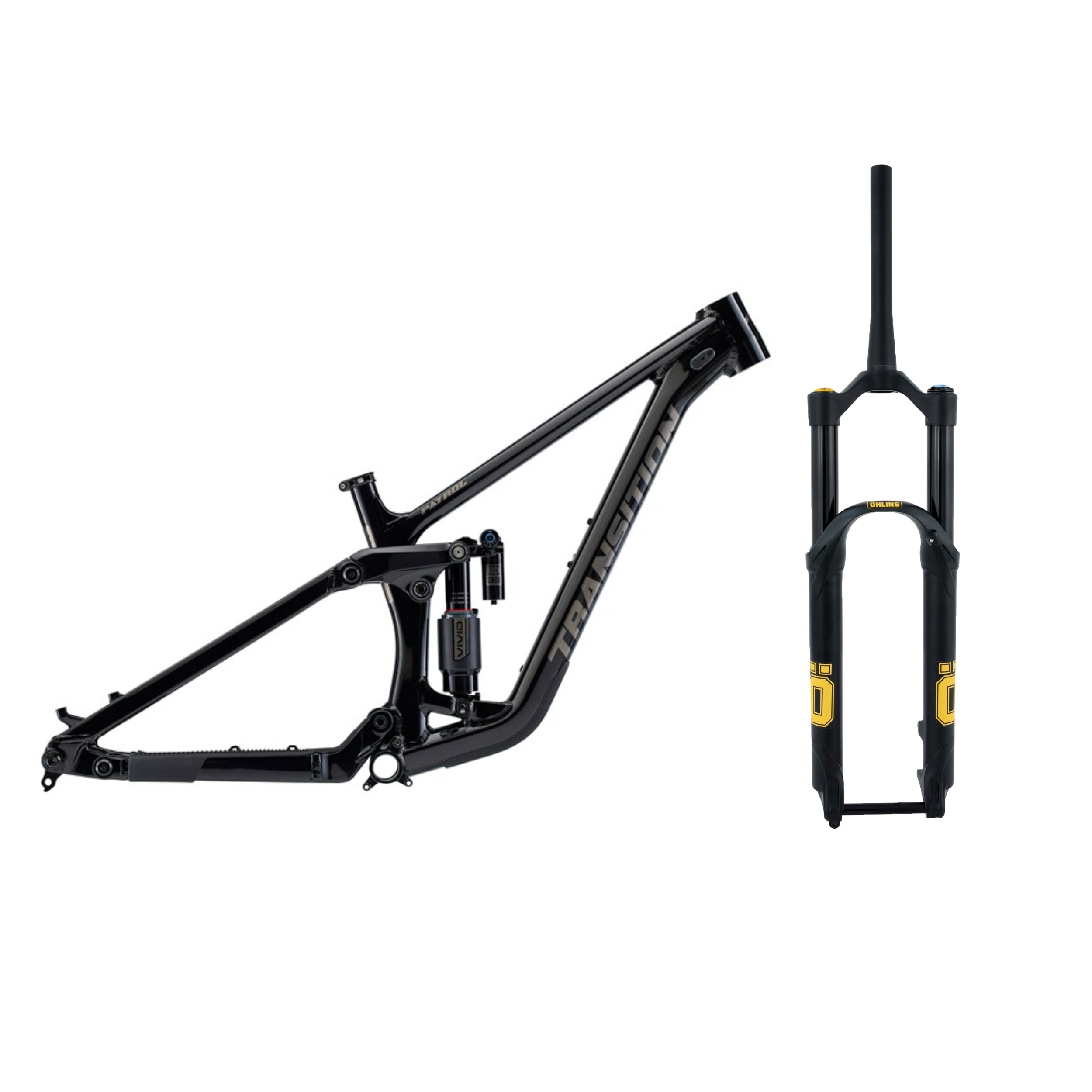

Name: Transition Patrol Alloy Frame | FREE Ohlins RXF38s
Brand: Transition
Price: 2199.0 GBP
Availability: OutOfStock

Transition Patrol Alloy Frame | FREE Ohlins RXF38s

Transition

£ 2,199.00

Tax included.

Colour

Size

Pairs well with

Limited Time Deal - Free Ohlins RXF38 M.2 180mm

The Purebred Party Animal

The mixed wheel Patrol has a new haircut but is still down for anything and truly unapologetic when it comes to shredding trail.

Being one of the longest standing bikes in our lineup, it was the obvious choice to mix it up. Updated geometry to accommodate the 29" front / 27.5" rear wheels and revised suspension tune might just make you ride all day, and then all night.

Jibbing, jumping, pumping and hooting your way down the trail, the updated Patrol loves to party. From bike parks to your local trails, the Patrol isn't concerned with where you ride but rather how much fun you are having.

Frame Specifications


Rear Travel:	160 mm (Compatible with 170 mm)
Front Travel:	160 mm (Compatible with 170 mm single crown fork or dual crown forks)
Wheel Size:	29" Front / 27.5" Rear
Sizes:	SM, MD, LG, XL
Frame Bearings:	2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900
Fork Axle To Crown:	574 mm at 160 mm
Fork Offset:	44 mm
Rear Shock Size:	205 × 60 mm (Compatible with 205 × 65 mm)
Shock Hardware:	Trunnion Mount Top / 30 × 8 mm Bottom
Headset (Top):	56 mm Zero Stack
Headset (Bottom):	56 mm Zero Stack
BB Shell:	73 mm BSA Threaded
Chainline:	52 mm
Rear Brake Mount:	180 mm Post Mount, Max Rotor Size 223 mm
Derailleur Hanger:	SRAM UDH
Rear Axle:	Transition Axle For UDH, 12 × 148 mm Spacing
ISCG Tabs:	ISCG05
Seatpost Diameter:	31.6 mm
Seat Clamp:	Carbon: 37.0 mm
Max Seatpost	Carbon: Small 220 mm \| Medium 250 mm \| Large 290 mm \| XL 320 mm
Max Chainring Size:	34T Standard Single Ring (Based on 52 mm Boost Chainline)
Max Tyre Size:	27.5 × 2.6"
Rear Shock Sag:	160 / 60 mm: 16-20 mm (27 - 33%) 170 / 65 mm: 18-22 mm (28 - 34%)
